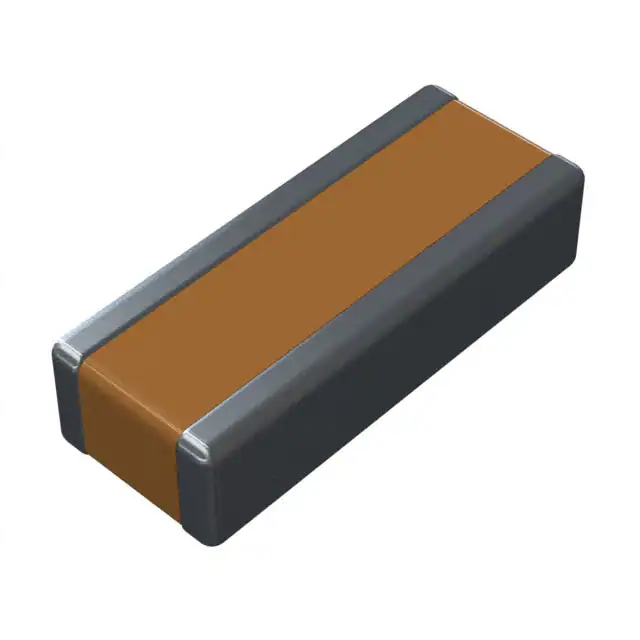

| Part Number | 0306ZC224MAT4A | 0306ZC224ZAT4A | 03066C224MAT4A | 0306ZC224MAT2A |
|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active | Active |
| Capacitance | 0.22 µF | 0.22 µF | 0.22 µF | 0.22 µF |
| Tolerance | ±20% | -20%, +80% | ±20% | ±20% |
| Voltage - Rated | 10V | 10V | 6.3V | 10V |
| Temperature Coefficient | X7R | X7R | X7R | X7R |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Features | Low ESL (Reverse Geometry) | Low ESL (Reverse Geometry) | Low ESL (Reverse Geometry) | Low ESL (Reverse Geometry) |
| Ratings | - | - | - | - |
| Applications | Bypass, Decoupling | Bypass, Decoupling | Bypass, Decoupling | Bypass, Decoupling |
| Failure Rate | - | - | - | - |
| Mounting Type | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC |
| Package / Case | 0306 (0816 Metric) | 0306 (0816 Metric) | 0306 (0816 Metric) | 0306 (0816 Metric) |
| Size / Dimension | 0.032" L x 0.063" W (0.81mm x 1.60mm) | 0.032" L x 0.063" W (0.81mm x 1.60mm) | 0.032" L x 0.063" W (0.81mm x 1.60mm) | 0.032" L x 0.063" W (0.81mm x 1.60mm) |
| Height - Seated (Max) | - | - | - | - |
| Thickness (Max) | 0.024" (0.61mm) | 0.024" (0.61mm) | 0.024" (0.61mm) | 0.024" (0.61mm) |
| Lead Spacing | - | - | - | - |
| Lead Style | - | - | - | - |
