Please send RFQ , we will respond immediately.

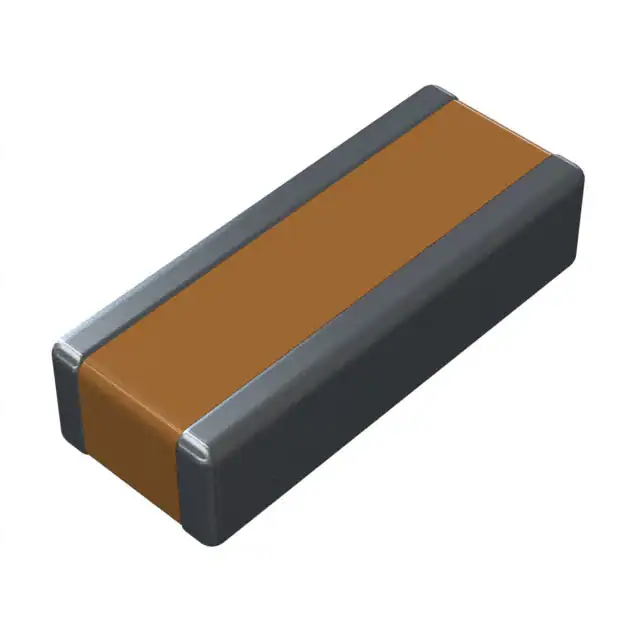

| Part Number | 03063C103MAT2A | 0306YC103MAT2A | 0306ZC103MAT2A | 03066C103MAT2A | 03063C102MAT2A | 03063C103KAT2A |
|---|---|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active | Active | Active | Active |
| Capacitance | 10000 pF | 10000 pF | 10000 pF | 10000 pF | 1000 pF | 10000 pF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±10% |
| Voltage - Rated | 25V | 16V | 10V | 6.3V | 25V | 25V |
| Temperature Coefficient | X7R | X7R | X7R | X7R | X7R | X7R |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Features | Low ESL (Reverse Geometry) | Low ESL (Reverse Geometry) | Low ESL (Reverse Geometry) | Low ESL (Reverse Geometry) | Low ESL (Reverse Geometry) | Low ESL (Reverse Geometry) |
| Ratings | - | - | - | - | - | - |
| Applications | Bypass, Decoupling | Bypass, Decoupling | Bypass, Decoupling | Bypass, Decoupling | Bypass, Decoupling | Bypass, Decoupling |
| Failure Rate | - | - | - | - | - | - |
| Mounting Type | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC |
| Package / Case | 0306 (0816 Metric) | 0306 (0816 Metric) | 0306 (0816 Metric) | 0306 (0816 Metric) | 0306 (0816 Metric) | 0306 (0816 Metric) |
| Size / Dimension | 0.032" L x 0.063" W (0.81mm x 1.60mm) | 0.032" L x 0.063" W (0.81mm x 1.60mm) | 0.032" L x 0.063" W (0.81mm x 1.60mm) | 0.032" L x 0.063" W (0.81mm x 1.60mm) | 0.032" L x 0.063" W (0.81mm x 1.60mm) | 0.032" L x 0.063" W (0.81mm x 1.60mm) |
| Height - Seated (Max) | - | - | - | - | - | - |
| Thickness (Max) | 0.024" (0.61mm) | 0.024" (0.61mm) | 0.024" (0.61mm) | 0.024" (0.61mm) | 0.024" (0.61mm) | 0.024" (0.61mm) |
| Lead Spacing | - | - | - | - | - | - |
| Lead Style | - | - | - | - | - | - |
