APEM Inc.-ZL36S010100 - Toggle Switches Product Specifications and Latest Quotes

Mounting Type:	Panel Mount
Circuit:	SPDT
Switch Function:	On-On
Current Rating (Amps):	500mA (AC/DC)
Voltage Rating - AC:	48 V
Voltage Rating - DC:	48 V
Actuator Type:	Standard Round
Actuator Length:	5.50mm
Illumination:	Non-Illuminated
Illumination Type, Color:	-
Illumination Voltage (Nominal):	-
Termination Style:	Solder Lug
Panel Cutout Dimensions:	Circular - 4.90mm Dia
Bushing Thread:	10-48
Ingress Protection:	-
Features:	Epoxy Sealed Terminals
Operating Temperature:	-30°C ~ 85°C

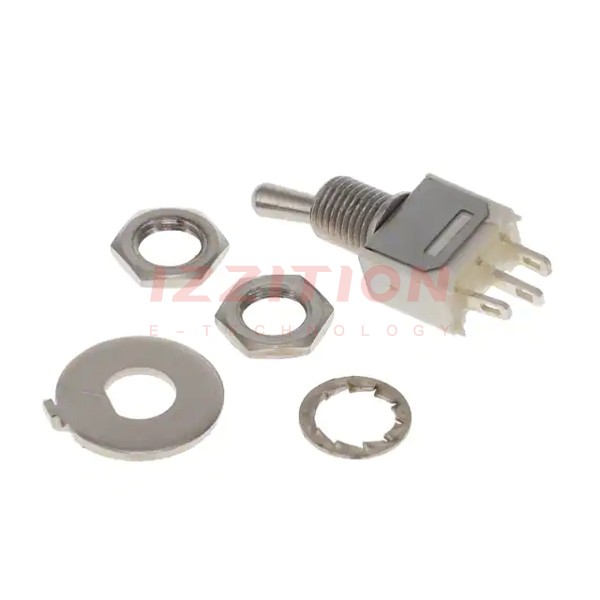

APEM Inc. ZL36S010100
