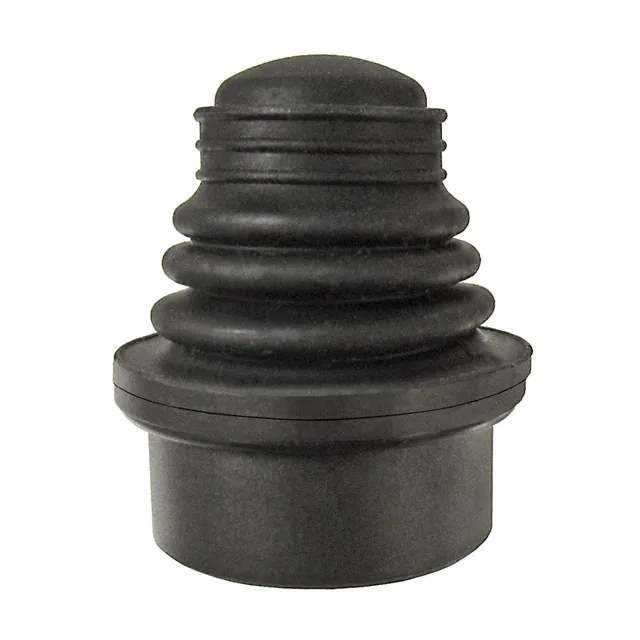

APEM Inc.-TS6A1P00A - Navigation Switches, Joystick Product Specifications and Latest Quotes

Type:	Thumbstick, 2 - Axis
Actuator Type:	Pushbutton
Switch Function:	4-Way Directional, Center Select
Functions, Extra:	-
Output:	Analog (Hall Effect)
Voltage - Supply:	5VDC
Current Rating (Amps):	-
Voltage Rating - AC:	-
Voltage Rating - DC:	-
Contact Material:	-
Contact Finish:	-
Resistance:	-
Mounting Type:	Panel Mount
Termination Style:	Wire Leads
Operating Temperature:	-40°C ~ 85°C
Panel Cutout Dimensions:	Circular - 25.65mm Dia
Ingress Protection:	IP67/IP69K - Dust Tight, Water Resistant, Waterproof
Features:	-

APEM Inc. TS6A1P00A
