APEM Inc.-TL42W005000 - Toggle Switches Product Specifications and Latest Quotes

Mounting Type:	Through Hole, Right Angle
Circuit:	DPDT
Switch Function:	On-Mom
Current Rating (Amps):	0.4VA (AC/DC)
Voltage Rating - AC:	20 V
Voltage Rating - DC:	20 V
Actuator Type:	Standard Round
Actuator Length:	5.30mm
Illumination:	Non-Illuminated
Illumination Type, Color:	-
Illumination Voltage (Nominal):	-
Termination Style:	PC Pin
Panel Cutout Dimensions:	-
Bushing Thread:	Unthreaded
Ingress Protection:	-
Features:	Epoxy Sealed Terminals
Operating Temperature:	-30°C ~ 85°C

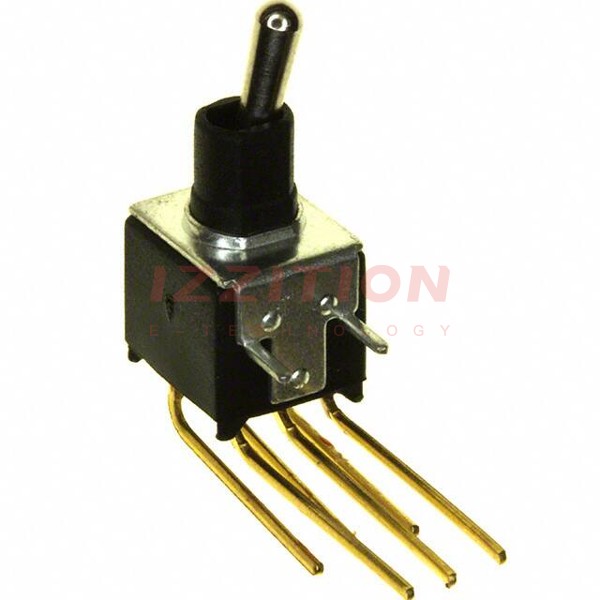

APEM Inc. TL42W005000
