Please send RFQ , we will respond immediately.

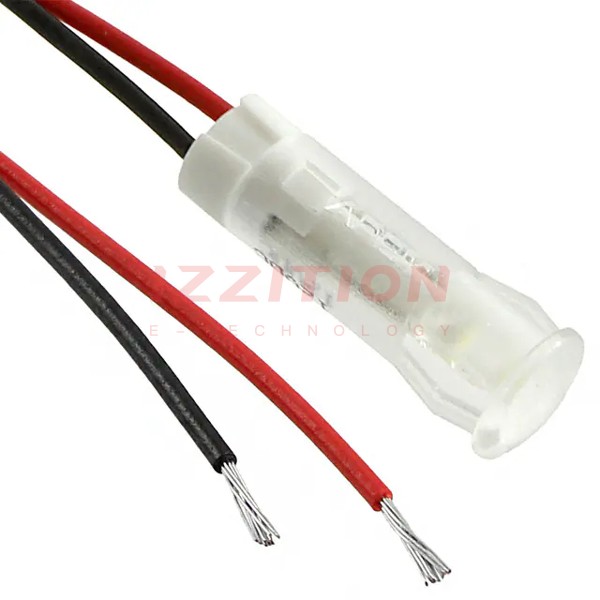

| Part Number | QS63XXW12 | QS63XXY12 | QS83XXW12 | QS61XXW12 | QS63XXB12 | QS63XXG12 | QS63XXO12 | QS63XXR12 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | LED | LED | LED | LED | LED | LED | LED | LED |
| Lamp Color | White | Yellow | White | White | Blue | Green | Orange | Red |
| Lens Color | White | Yellow | White | White | Blue | Green | Orange | Red |
| Lens Transparency | Diffused | Diffused | Diffused | Diffused | Diffused | Diffused | Diffused | Diffused |
| Ratings | DC | DC | DC | DC | DC | DC | DC | DC |
| Voltage | 12V | 12V | 12V | 12V | 12V | 12V | 12V | 12V |
| Current | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA |
| Panel Cutout Shape | Round | Round | Round | Round | Round | Round | Round | Round |
| Panel Cutout Dimensions | 0.24" (6.00mm) | 0.24" (6.00mm) | 0.315" (8.00mm) | 0.24" (6.00mm) | 0.24" (6.00mm) | 0.24" (6.00mm) | 0.24" (6.00mm) | 0.24" (6.00mm) |
| Lens Size | 7.20mm Dia | 7.20mm Dia | 10.00mm Dia | 7.20mm Dia | 7.20mm Dia | 7.20mm Dia | 7.20mm Dia | 7.20mm Dia |
| Lens Style | Round with Convex Top | Round with Convex Top | Round with Flat Top | Round with Convex Top | Round with Convex Top | Round with Convex Top | Round with Convex Top | Round with Convex Top |
| Millicandela Rating | 1200mcd | 20mcd | 1200mcd | 1200mcd | 800mcd | 20mcd | 30mcd | 25mcd |
| Wavelength - Peak | - | - | - | - | - | - | - | - |
| Viewing Angle | 30° | 30° | 30° | 30° | 30° | 30° | 30° | 30° |
| Termination Style | Wire Leads - 7.87" (200.00mm) | Wire Leads - 7.87" (200.00mm) | Wire Leads - 7.87" (200.00mm) | Solder Lug | Wire Leads - 7.87" (200.00mm) | Wire Leads - 7.87" (200.00mm) | Wire Leads - 7.87" (200.00mm) | Wire Leads - 7.87" (200.00mm) |
| Ingress Protection | - | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - | - |
