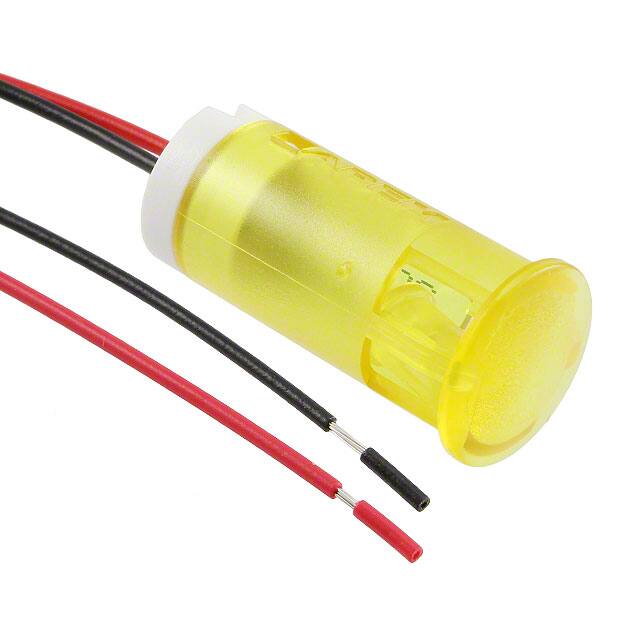

| Part Number | QS123XXY24 | QS103XXY24 | QS121XXY24 | QS123XXB24 | QS123XXG24 | QS123XXO24 | QS123XXR24 | QS123XXW24 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | LED | LED | LED | LED | LED | LED | LED | LED |
| Lamp Color | Yellow | Yellow | Yellow | Blue | Green | Orange | Red | White |
| Lens Color | Yellow | Yellow | Yellow | Blue | Green | Orange | Red | White |
| Lens Transparency | Diffused | Diffused | Diffused | Diffused | Diffused | Diffused | Diffused | Diffused |
| Ratings | DC | DC | DC | DC | DC | DC | DC | DC |
| Voltage | 24V | 24V | 24V | 24V | 24V | 24V | 24V | 24V |
| Current | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA |
| Panel Cutout Shape | Round | Round | Round | Round | Round | Round | Round | Round |
| Panel Cutout Dimensions | 0.472" (12.00mm) | 0.394" (10.00mm) | 0.472" (12.00mm) | 0.472" (12.00mm) | 0.472" (12.00mm) | 0.472" (12.00mm) | 0.472" (12.00mm) | 0.472" (12.00mm) |
| Lens Size | 14.00mm Dia | 12.00mm Dia | 14.00mm Dia | 14.00mm Dia | 14.00mm Dia | 14.00mm Dia | 14.00mm Dia | 14.00mm Dia |
| Lens Style | Round with Flat Top | Round with Flat Top | Round with Flat Top | Round with Flat Top | Round with Flat Top | Round with Flat Top | Round with Flat Top | Round with Flat Top |
| Millicandela Rating | 20mcd | 20mcd | 20mcd | 800mcd | 20mcd | 30mcd | 25mcd | 1200mcd |
| Wavelength - Peak | - | - | - | - | - | - | - | - |
| Viewing Angle | 30° | 30° | 30° | 30° | 30° | 30° | 30° | 30° |
| Termination Style | Wire Leads - 7.87" (200.00mm) | Wire Leads - 7.87" (200.00mm) | Solder Lug | Wire Leads - 7.87" (200.00mm) | Wire Leads - 7.87" (200.00mm) | Wire Leads - 7.87" (200.00mm) | Wire Leads - 7.87" (200.00mm) | Solder Lug |
| Ingress Protection | - | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - | - |
