APEM Inc.-QS123XXHR110 - Panel Indicators, Pilot Lights Product Specifications and Latest Quotes

Part Number	QS123XXHR110	QS123XXHY110	QS123XXHW110	QS103XXHR110	QS121XXHR110	QS123XXHB110	QS123XXHG110	QS123XXHO110
Manufacturer	APEM Inc.	APEM Inc.	APEM Inc.	APEM Inc.	APEM Inc.	APEM Inc.	APEM Inc.	APEM Inc.
Product Status	Active	Active	Active	Active	Active	Active	Active	Active
Type	LED	LED	LED	LED	LED	LED	LED	LED
Lamp Color	Red	Yellow	White	Red	Red	Blue	Green	Orange
Lens Color	Red	Yellow	White	Red	Red	Blue	Green	Orange
Lens Transparency	Diffused	Diffused	Diffused	Diffused	Diffused	Diffused	Diffused	Diffused
Ratings	AC	AC	AC	AC	AC	AC	AC	AC
Voltage	110V	110V	110V	110V	110V	110V	110V	110V
Current	6mA	6mA	6mA	6mA	6mA	6mA	6mA	6mA
Panel Cutout Shape	Round	Round	Round	Round	Round	Round	Round	Round
Panel Cutout Dimensions	0.472" (12.00mm)	0.472" (12.00mm)	0.472" (12.00mm)	0.394" (10.00mm)	0.472" (12.00mm)	0.472" (12.00mm)	0.472" (12.00mm)	0.472" (12.00mm)
Lens Size	14.00mm Dia	14.00mm Dia	14.00mm Dia	12.00mm Dia	14.00mm Dia	14.00mm Dia	14.00mm Dia	14.00mm Dia
Lens Style	Round with Flat Top	Round with Flat Top	Round with Flat Top	Round with Flat Top	Round with Flat Top	Round with Flat Top	Round with Flat Top	Round with Flat Top
Millicandela Rating	6000mcd	380mcd	2500mcd	6000mcd	6000mcd	1600mcd	1200mcd	4100mcd
Wavelength - Peak	-	-	-	-	-	-	-	-
Viewing Angle	45°	45°	45°	45°	45°	45°	45°	45°
Termination Style	Wire Leads - 7.87" (200.00mm)	Wire Leads - 7.87" (200.00mm)	Wire Leads - 7.87" (200.00mm)	Wire Leads - 7.87" (200.00mm)	Solder Lug	Wire Leads - 7.87" (200.00mm)	Wire Leads - 7.87" (200.00mm)	Wire Leads - 7.87" (200.00mm)
Ingress Protection	-	-	-	-	-	-	-	-
Features	-	-	-	-	-	-	-	-

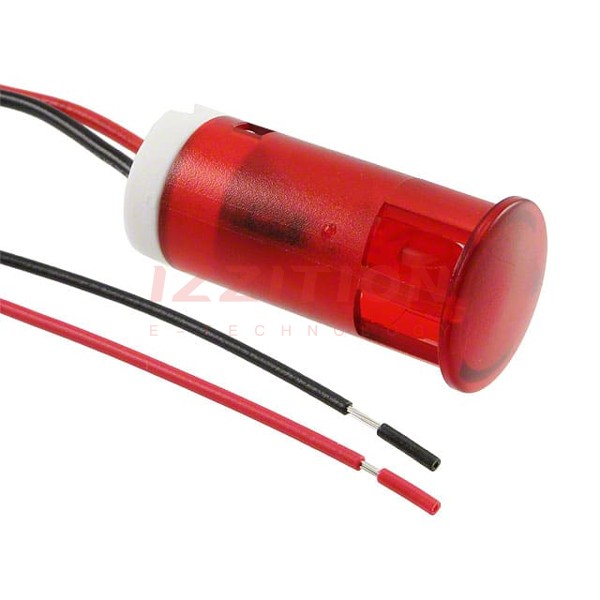

APEM Inc. QS123XXHR110
