APEM Inc.-QS123XXHB110 - Panel Indicators, Pilot Lights Product Specifications and Latest Quotes

Part Number	QS123XXHB110	QS123XXHG110	QS123XXHY110	QS123XXHR110	QS123XXHW110	QS123XXHO110	QS103XXHB110	QS121XXHB110
Manufacturer	APEM Inc.	APEM Inc.	APEM Inc.	APEM Inc.	APEM Inc.	APEM Inc.	APEM Inc.	APEM Inc.
Product Status	Active	Active	Active	Active	Active	Active	Active	Active
Type	LED	LED	LED	LED	LED	LED	LED	LED
Lamp Color	Blue	Green	Yellow	Red	White	Orange	Blue	Blue
Lens Color	Blue	Green	Yellow	Red	White	Orange	Blue	Blue
Lens Transparency	Diffused	Diffused	Diffused	Diffused	Diffused	Diffused	Diffused	Diffused
Ratings	AC	AC	AC	AC	AC	AC	AC	AC
Voltage	110V	110V	110V	110V	110V	110V	110V	110V
Current	6mA	6mA	6mA	6mA	6mA	6mA	6mA	6mA
Panel Cutout Shape	Round	Round	Round	Round	Round	Round	Round	Round
Panel Cutout Dimensions	0.472" (12.00mm)	0.472" (12.00mm)	0.472" (12.00mm)	0.472" (12.00mm)	0.472" (12.00mm)	0.472" (12.00mm)	0.394" (10.00mm)	0.472" (12.00mm)
Lens Size	14.00mm Dia	14.00mm Dia	14.00mm Dia	14.00mm Dia	14.00mm Dia	14.00mm Dia	12.00mm Dia	14.00mm Dia
Lens Style	Round with Flat Top	Round with Flat Top	Round with Flat Top	Round with Flat Top	Round with Flat Top	Round with Flat Top	Round with Flat Top	Round with Flat Top
Millicandela Rating	1600mcd	1200mcd	380mcd	6000mcd	2500mcd	4100mcd	1600mcd	1600mcd
Wavelength - Peak	-	-	-	-	-	-	-	-
Viewing Angle	45°	45°	45°	45°	45°	45°	45°	45°
Termination Style	Wire Leads - 7.87" (200.00mm)	Wire Leads - 7.87" (200.00mm)	Wire Leads - 7.87" (200.00mm)	Wire Leads - 7.87" (200.00mm)	Wire Leads - 7.87" (200.00mm)	Wire Leads - 7.87" (200.00mm)	Wire Leads - 7.87" (200.00mm)	Solder Lug
Ingress Protection	-	-	-	-	-	-	-	-
Features	-	-	-	-	-	-	-	-

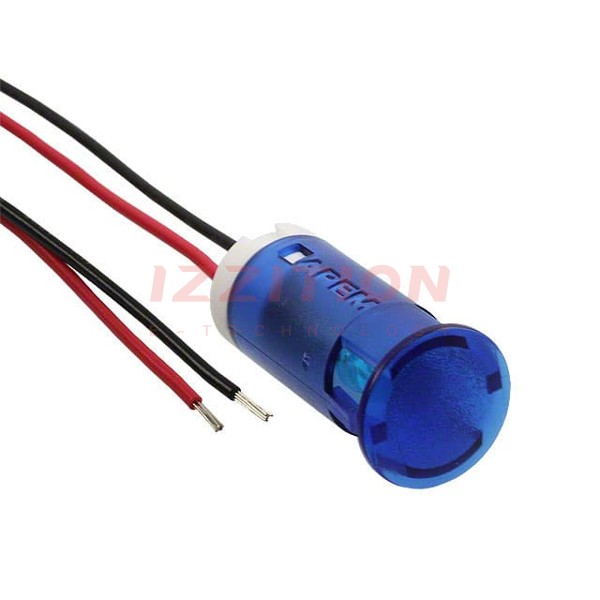

APEM Inc. QS123XXHB110
