APEM Inc.-QS103XXO24 - Panel Indicators, Pilot Lights Product Specifications and Latest Quotes

Part Number	QS103XXO24	QS123XXO24	QS103XXR24	QS103XXY24	QS103XXW24	QS101XXO24	QS103XXB24	QS103XXG24
Manufacturer	APEM Inc.	APEM Inc.	APEM Inc.	APEM Inc.	APEM Inc.	APEM Inc.	APEM Inc.	APEM Inc.
Product Status	Active	Active	Active	Active	Active	Active	Active	Active
Type	LED	LED	LED	LED	LED	LED	LED	LED
Lamp Color	Orange	Orange	Red	Yellow	White	Orange	Blue	Green
Lens Color	Orange	Orange	Red	Yellow	White	Orange	Blue	Green
Lens Transparency	Diffused	Diffused	Diffused	Diffused	Diffused	Diffused	Diffused	Diffused
Ratings	DC	DC	DC	DC	DC	DC	DC	DC
Voltage	24V	24V	24V	24V	24V	24V	24V	24V
Current	20mA	20mA	20mA	20mA	20mA	20mA	20mA	20mA
Panel Cutout Shape	Round	Round	Round	Round	Round	Round	Round	Round
Panel Cutout Dimensions	0.394" (10.00mm)	0.472" (12.00mm)	0.394" (10.00mm)	0.394" (10.00mm)	0.394" (10.00mm)	0.394" (10.00mm)	0.394" (10.00mm)	0.394" (10.00mm)
Lens Size	12.00mm Dia	14.00mm Dia	12.00mm Dia	12.00mm Dia	12.00mm Dia	12.00mm Dia	12.00mm Dia	12.00mm Dia
Lens Style	Round with Flat Top	Round with Flat Top	Round with Flat Top	Round with Flat Top	Round with Flat Top	Round with Flat Top	Round with Flat Top	Round with Flat Top
Millicandela Rating	30mcd	30mcd	25mcd	20mcd	1200mcd	30mcd	800mcd	20mcd
Wavelength - Peak	-	-	-	-	-	-	-	-
Viewing Angle	30°	30°	30°	30°	30°	30°	30°	30°
Termination Style	Wire Leads - 7.87" (200.00mm)	Wire Leads - 7.87" (200.00mm)	Wire Leads - 7.87" (200.00mm)	Wire Leads - 7.87" (200.00mm)	Wire Leads - 7.87" (200.00mm)	Solder Lug	Wire Leads - 7.87" (200.00mm)	Wire Leads - 7.87" (200.00mm)
Ingress Protection	-	-	-	-	-	-	-	-
Features	-	-	-	-	-	-	-	-

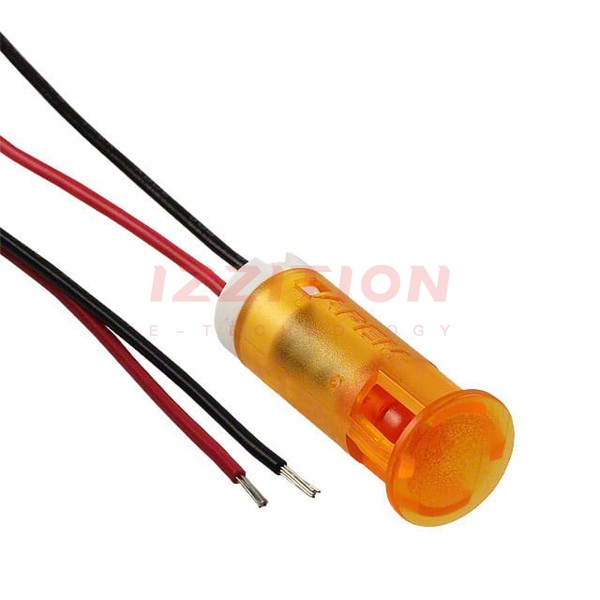

APEM Inc. QS103XXO24
