APEM Inc.-QS103XXHR220 - Panel Indicators, Pilot Lights Product Specifications and Latest Quotes

Part Number	QS103XXHR220	QS123XXHR220	QS103XXHY220	QS103XXHW220	QS101XXHR220	QS103XXHB220	QS103XXHG220	QS103XXHO220
Manufacturer	APEM Inc.	APEM Inc.	APEM Inc.	APEM Inc.	APEM Inc.	APEM Inc.	APEM Inc.	APEM Inc.
Product Status	Active	Active	Active	Active	Active	Obsolete	Active	Active
Type	LED	LED	LED	LED	LED	LED	LED	LED
Lamp Color	Red	Red	Yellow	White	Red	Blue	Green	Orange
Lens Color	Red	Red	Yellow	White	Red	Blue	Green	Orange
Lens Transparency	Diffused	Diffused	Diffused	Diffused	Diffused	Diffused	Diffused	Diffused
Ratings	AC	AC	AC	AC	AC	AC	AC	AC
Voltage	220V	220V	220V	220V	220V	220V	220V	220V
Current	3mA	3mA	3mA	3mA	3mA	3mA	3mA	3mA
Panel Cutout Shape	Round	Round	Round	Round	Round	Round	Round	Round
Panel Cutout Dimensions	0.394" (10.00mm)	0.472" (12.00mm)	0.394" (10.00mm)	0.394" (10.00mm)	0.394" (10.00mm)	0.394" (10.00mm)	0.394" (10.00mm)	0.394" (10.00mm)
Lens Size	12.00mm Dia	14.00mm Dia	12.00mm Dia	12.00mm Dia	12.00mm Dia	12.00mm Dia	12.00mm Dia	12.00mm Dia
Lens Style	Round with Flat Top	Round with Flat Top	Round with Flat Top	Round with Flat Top	Round with Flat Top	Round with Flat Top	Round with Flat Top	Round with Flat Top
Millicandela Rating	6000mcd	6000mcd	380mcd	2500mcd	6000mcd	1600mcd	1200mcd	4100mcd
Wavelength - Peak	-	-	-	-	-	-	-	-
Viewing Angle	45°	45°	45°	45°	45°	45°	45°	45°
Termination Style	Wire Leads - 7.87" (200.00mm)	Wire Leads - 7.87" (200.00mm)	Wire Leads - 7.87" (200.00mm)	Wire Leads - 7.87" (200.00mm)	Solder Lug	Wire Leads - 7.87" (200.00mm)	Wire Leads - 7.87" (200.00mm)	Wire Leads - 7.87" (200.00mm)
Ingress Protection	-	-	-	-	-	-	-	-
Features	-	-	-	-	-	-	-	-

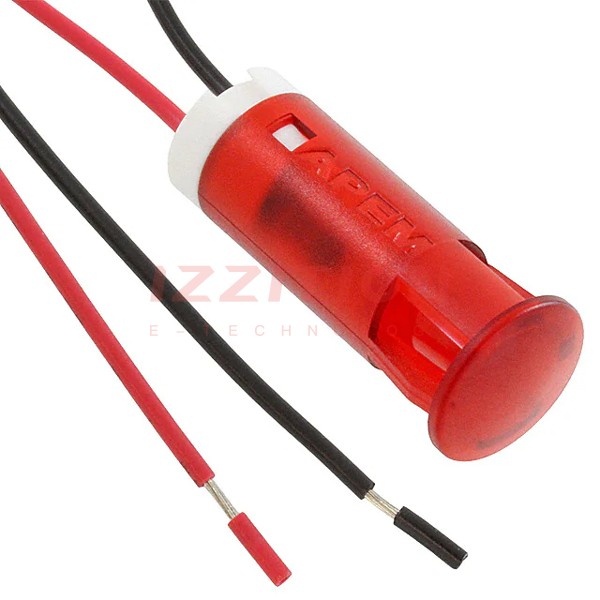

APEM Inc. QS103XXHR220
