APEM Inc.-QS103XXHO220 - Panel Indicators, Pilot Lights Product Specifications and Latest Quotes

Part Number	QS103XXHO220	QS103XXHR220	QS103XXHY220	QS123XXHO220	QS103XXHW220	QS101XXHO220	QS103XXHB220	QS103XXHG220
Manufacturer	APEM Inc.	APEM Inc.	APEM Inc.	APEM Inc.	APEM Inc.	APEM Inc.	APEM Inc.	APEM Inc.
Product Status	Active	Active	Active	Active	Active	Active	Obsolete	Active
Type	LED	LED	LED	LED	LED	LED	LED	LED
Lamp Color	Orange	Red	Yellow	Orange	White	Orange	Blue	Green
Lens Color	Orange	Red	Yellow	Orange	White	Orange	Blue	Green
Lens Transparency	Diffused	Diffused	Diffused	Diffused	Diffused	Diffused	Diffused	Diffused
Ratings	AC	AC	AC	AC	AC	AC	AC	AC
Voltage	220V	220V	220V	220V	220V	220V	220V	220V
Current	3mA	3mA	3mA	3mA	3mA	3mA	3mA	3mA
Panel Cutout Shape	Round	Round	Round	Round	Round	Round	Round	Round
Panel Cutout Dimensions	0.394" (10.00mm)	0.394" (10.00mm)	0.394" (10.00mm)	0.472" (12.00mm)	0.394" (10.00mm)	0.394" (10.00mm)	0.394" (10.00mm)	0.394" (10.00mm)
Lens Size	12.00mm Dia	12.00mm Dia	12.00mm Dia	14.00mm Dia	12.00mm Dia	12.00mm Dia	12.00mm Dia	12.00mm Dia
Lens Style	Round with Flat Top	Round with Flat Top	Round with Flat Top	Round with Flat Top	Round with Flat Top	Round with Flat Top	Round with Flat Top	Round with Flat Top
Millicandela Rating	4100mcd	6000mcd	380mcd	4100mcd	2500mcd	4100mcd	1600mcd	1200mcd
Wavelength - Peak	-	-	-	-	-	-	-	-
Viewing Angle	45°	45°	45°	45°	45°	45°	45°	45°
Termination Style	Wire Leads - 7.87" (200.00mm)	Wire Leads - 7.87" (200.00mm)	Wire Leads - 7.87" (200.00mm)	Wire Leads - 7.87" (200.00mm)	Wire Leads - 7.87" (200.00mm)	Solder Lug	Wire Leads - 7.87" (200.00mm)	Wire Leads - 7.87" (200.00mm)
Ingress Protection	-	-	-	-	-	-	-	-
Features	-	-	-	-	-	-	-	-

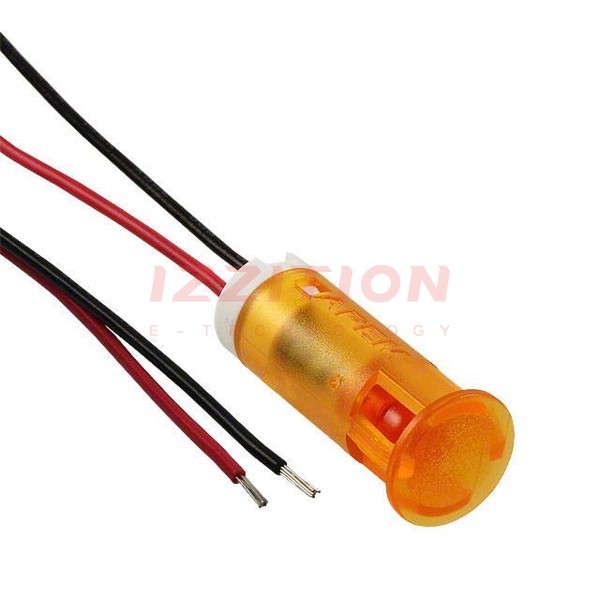

APEM Inc. QS103XXHO220
