APEM Inc.-QS103XXHG110 - Panel Indicators, Pilot Lights Product Specifications and Latest Quotes

Part Number	QS103XXHG110	QS103XXHR110	QS103XXHO110	QS123XXHG110	QS103XXHY110	QS103XXHW110	QS101XXHG110	QS103XXHB110
Manufacturer	APEM Inc.	APEM Inc.	APEM Inc.	APEM Inc.	APEM Inc.	APEM Inc.	APEM Inc.	APEM Inc.
Product Status	Active	Active	Active	Active	Active	Active	Active	Active
Type	LED	LED	LED	LED	LED	LED	LED	LED
Lamp Color	Green	Red	Orange	Green	Yellow	White	Green	Blue
Lens Color	Green	Red	Orange	Green	Yellow	White	Green	Blue
Lens Transparency	Diffused	Diffused	Diffused	Diffused	Diffused	Diffused	Diffused	Diffused
Ratings	AC	AC	AC	AC	AC	AC	AC	AC
Voltage	110V	110V	110V	110V	110V	110V	110V	110V
Current	6mA	6mA	6mA	6mA	6mA	6mA	6mA	6mA
Panel Cutout Shape	Round	Round	Round	Round	Round	Round	Round	Round
Panel Cutout Dimensions	0.394" (10.00mm)	0.394" (10.00mm)	0.394" (10.00mm)	0.472" (12.00mm)	0.394" (10.00mm)	0.394" (10.00mm)	0.394" (10.00mm)	0.394" (10.00mm)
Lens Size	12.00mm Dia	12.00mm Dia	12.00mm Dia	14.00mm Dia	12.00mm Dia	12.00mm Dia	12.00mm Dia	12.00mm Dia
Lens Style	Round with Flat Top	Round with Flat Top	Round with Flat Top	Round with Flat Top	Round with Flat Top	Round with Flat Top	Round with Flat Top	Round with Flat Top
Millicandela Rating	1200mcd	6000mcd	4100mcd	1200mcd	380mcd	2500mcd	1200mcd	1600mcd
Wavelength - Peak	-	-	-	-	-	-	-	-
Viewing Angle	45°	45°	45°	45°	45°	45°	45°	45°
Termination Style	Wire Leads - 7.87" (200.00mm)	Wire Leads - 7.87" (200.00mm)	Wire Leads - 7.87" (200.00mm)	Wire Leads - 7.87" (200.00mm)	Wire Leads - 7.87" (200.00mm)	Wire Leads - 7.87" (200.00mm)	Solder Lug	Wire Leads - 7.87" (200.00mm)
Ingress Protection	-	-	-	-	-	-	-	-
Features	-	-	-	-	-	-	-	-

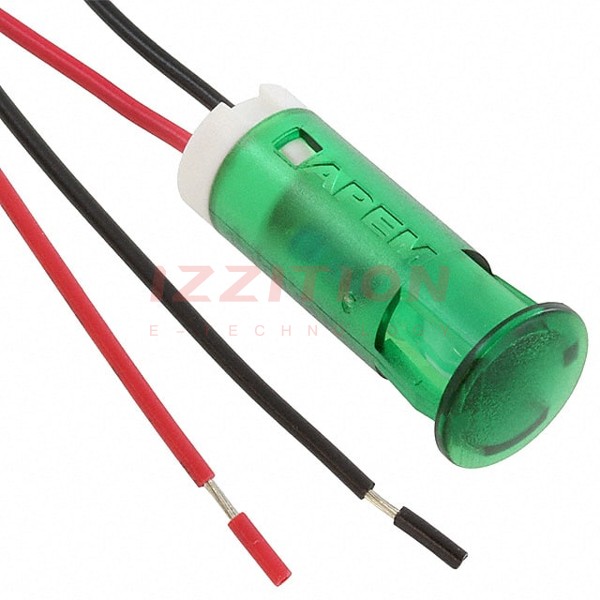

APEM Inc. QS103XXHG110
