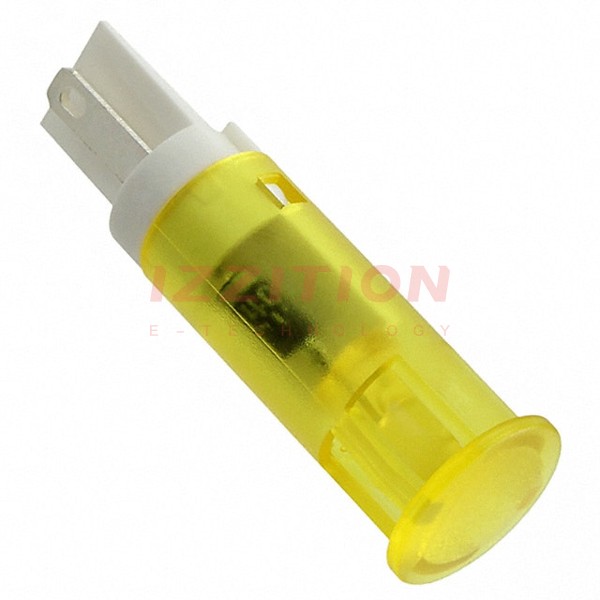

| Part Number | QS101XXHY110 | QS103XXHY110 | QS121XXHY110 | QS101XXHB110 | QS101XXHG110 | QS101XXHO110 | QS101XXHR110 | QS101XXHW110 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | LED | LED | LED | LED | LED | LED | LED | LED |
| Lamp Color | Yellow | Yellow | Yellow | Blue | Green | Orange | Red | White |
| Lens Color | Yellow | Yellow | Yellow | Blue | Green | Orange | Red | White |
| Lens Transparency | Diffused | Diffused | Diffused | Diffused | Diffused | Diffused | Diffused | Diffused |
| Ratings | AC | AC | AC | AC | AC | AC | AC | AC |
| Voltage | 110V | 110V | 110V | 110V | 110V | 110V | 110V | 110V |
| Current | 6mA | 6mA | 6mA | 6mA | 6mA | 6mA | 6mA | 6mA |
| Panel Cutout Shape | Round | Round | Round | Round | Round | Round | Round | Round |
| Panel Cutout Dimensions | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.472" (12.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) |
| Lens Size | 12.00mm Dia | 12.00mm Dia | 14.00mm Dia | 12.00mm Dia | 12.00mm Dia | 12.00mm Dia | 12.00mm Dia | 12.00mm Dia |
| Lens Style | Round with Flat Top | Round with Flat Top | Round with Flat Top | Round with Flat Top | Round with Flat Top | Round with Flat Top | Round with Flat Top | Round with Flat Top |
| Millicandela Rating | 380mcd | 380mcd | 380mcd | 1600mcd | 1200mcd | 4100mcd | 6000mcd | 2500mcd |
| Wavelength - Peak | - | - | - | - | - | - | - | - |
| Viewing Angle | 45° | 45° | 45° | 45° | 45° | 45° | 45° | 45° |
| Termination Style | Solder Lug | Wire Leads - 7.87" (200.00mm) | Solder Lug | Solder Lug | Solder Lug | Solder Lug | Solder Lug | Solder Lug |
| Ingress Protection | - | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - | - |
