Please send RFQ , we will respond immediately.

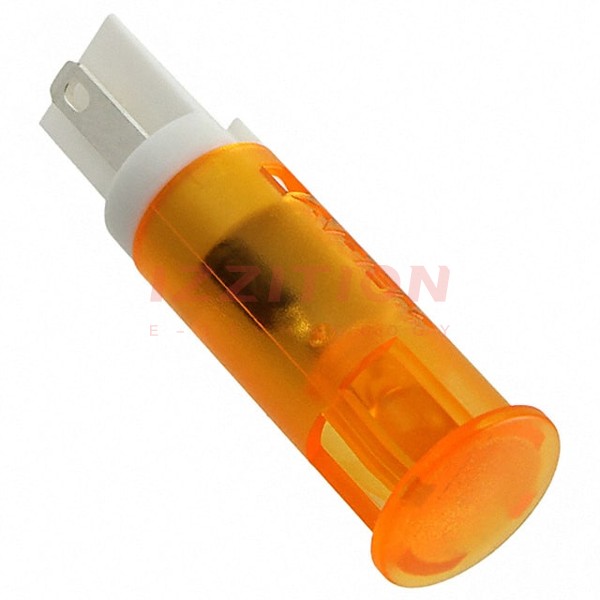

| Part Number | QS101XXHO220 | QS101XXHR220 | QS101XXHY220 | QS103XXHO220 | QS101XXHW220 | QS121XXHO220 | QS101XXHB220 | QS101XXHG220 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | LED | LED | LED | LED | LED | LED | LED | LED |
| Lamp Color | Orange | Red | Yellow | Orange | White | Orange | Blue | Green |
| Lens Color | Orange | Red | Yellow | Orange | White | Orange | Blue | Green |
| Lens Transparency | Diffused | Diffused | Diffused | Diffused | Diffused | Diffused | Diffused | Diffused |
| Ratings | AC | AC | AC | AC | AC | AC | AC | AC |
| Voltage | 220V | 220V | 220V | 220V | 220V | 220V | 220V | 220V |
| Current | 3mA | 3mA | 3mA | 3mA | 3mA | 3mA | 3mA | 3mA |
| Panel Cutout Shape | Round | Round | Round | Round | Round | Round | Round | Round |
| Panel Cutout Dimensions | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.472" (12.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) |
| Lens Size | 12.00mm Dia | 12.00mm Dia | 12.00mm Dia | 12.00mm Dia | 12.00mm Dia | 14.00mm Dia | 12.00mm Dia | 12.00mm Dia |
| Lens Style | Round with Flat Top | Round with Flat Top | Round with Flat Top | Round with Flat Top | Round with Flat Top | Round with Flat Top | Round with Flat Top | Round with Flat Top |
| Millicandela Rating | 4100mcd | 6000mcd | 380mcd | 4100mcd | 2500mcd | 4100mcd | 1600mcd | 1200mcd |
| Wavelength - Peak | - | - | - | - | - | - | - | - |
| Viewing Angle | 45° | 45° | 45° | 45° | 45° | 45° | 45° | 45° |
| Termination Style | Solder Lug | Solder Lug | Solder Lug | Wire Leads - 7.87" (200.00mm) | Solder Lug | Solder Lug | Solder Lug | Solder Lug |
| Ingress Protection | - | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - | - |
