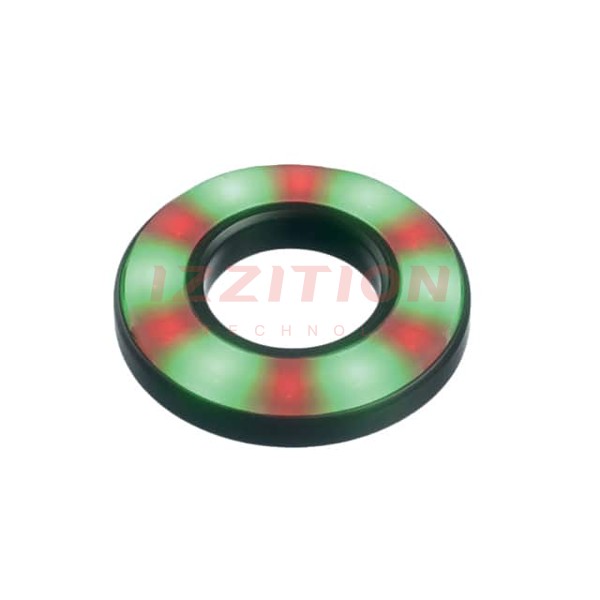

| Part Number | QH19028RGC | QH16028RGC | QH19028GC | QH19028RC | QH19028RGBC |
|---|---|---|---|---|---|
| Manufacturer | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Type | LED | LED | LED | LED | LED |
| Lamp Color | Red/Green | Red/Green | Green | Red | Red, Green, Blue (RGB) |
| Lens Color | Clear | Clear | Green | Red | Clear |
| Lens Transparency | Clear | Clear | Clear | Clear | Clear |
| Ratings | DC | DC | DC | DC | DC |
| Voltage | 12V ~ 26.4V | 12V ~ 26.4V | 12V ~ 26.4V | 12V ~ 26.4V | 12V ~ 26.4V |
| Current | 4.2 ~ 20mA | 4.2 ~ 20mA | 4.2 ~ 20mA | 4.2 ~ 20mA | 4.2 ~ 20mA |
| Panel Cutout Shape | Round | Round | Round | Round | Round |
| Panel Cutout Dimensions | 0.748" (19.00mm) | 0.63" (16.00mm) | 0.748" (19.00mm) | 0.748" (19.00mm) | 0.748" (19.00mm) |
| Lens Size | 38.50mm Dia | 35.50mm Dia | 38.50mm Dia | 38.50mm Dia | 38.50mm Dia |
| Lens Style | Ring with Domed Top | Ring with Domed Top | Ring with Domed Top | Ring with Domed Top | Ring with Domed Top |
| Millicandela Rating | - | - | - | - | - |
| Wavelength - Peak | - | - | - | - | - |
| Viewing Angle | - | - | - | - | - |
| Termination Style | Wire Leads - 7.87" (200.00mm) | Wire Leads - 7.87" (200.00mm) | Wire Leads - 7.87" (200.00mm) | Wire Leads - 7.87" (200.00mm) | Wire Leads - 7.87" (200.00mm) |
| Ingress Protection | IP67 | IP67 | IP67 | IP67 | IP67 |
| Features | - | - | - | - | - |
