APEM Inc.-Q8R3BXXR24E - Panel Indicators, Pilot Lights Product Specifications and Latest Quotes

Part Number	Q8R3BXXR24E	Q8R3CXXR24E	Q8R3BXXW24E	Q8R3BXXY24E	Q8P3BXXR24E	Q8R1BXXR24E	Q8R3BXXB24E	Q8R3BXXG24E
Manufacturer	APEM Inc.	APEM Inc.	APEM Inc.	APEM Inc.	APEM Inc.	APEM Inc.	APEM Inc.	APEM Inc.
Product Status	Active	Active	Active	Active	Active	Active	Active	Active
Type	LED	LED	LED	LED	LED	LED	LED	LED
Lamp Color	Red	Red	White	Yellow	Red	Red	Blue	Green
Lens Color	Red	Red	White	Yellow	Red	Red	Blue	Green
Lens Transparency	Diffused	Diffused	Diffused	Diffused	Diffused	Diffused	Diffused	Diffused
Ratings	DC	DC	DC	DC	DC	DC	DC	DC
Voltage	24V	24V	24V	24V	24V	24V	24V	24V
Current	20mA	20mA	20mA	20mA	20mA	20mA	20mA	20mA
Panel Cutout Shape	Round	Round	Round	Round	Round	Round	Round	Round
Panel Cutout Dimensions	0.31" (7.87mm)	0.31" (7.87mm)	0.31" (7.87mm)	0.31" (7.87mm)	0.31" (7.87mm)	0.31" (7.87mm)	0.31" (7.87mm)	0.31" (7.87mm)
Lens Size	5mm, T-1 3/4	5mm, T-1 3/4	5mm, T-1 3/4	5mm, T-1 3/4	5mm, T-1 3/4	5mm, T-1 3/4	5mm, T-1 3/4	5mm, T-1 3/4
Lens Style	Round with Domed Top	Round with Domed Top	Round with Domed Top	Round with Domed Top	Round with Domed Top	Round with Domed Top	Round with Domed Top	Round with Domed Top
Millicandela Rating	100mcd	100mcd	1600mcd	50mcd	100mcd	100mcd	1600mcd	60mcd
Wavelength - Peak	-	-	-	-	-	-	-	-
Viewing Angle	100°	100°	100°	100°	100°	100°	100°	100°
Termination Style	Wire Leads - 7.87" (200.00mm)	Wire Leads - 7.87" (200.00mm)	Wire Leads - 7.87" (200.00mm)	Wire Leads - 7.87" (200.00mm)	Wire Leads - 7.87" (200.00mm)	Solder Lug	Wire Leads - 7.87" (200.00mm)	Wire Leads - 7.87" (200.00mm)
Ingress Protection	IP67	IP67	IP67	IP67	IP67	IP67	IP67	IP67
Features	-	-	-	-	-	-	-	-

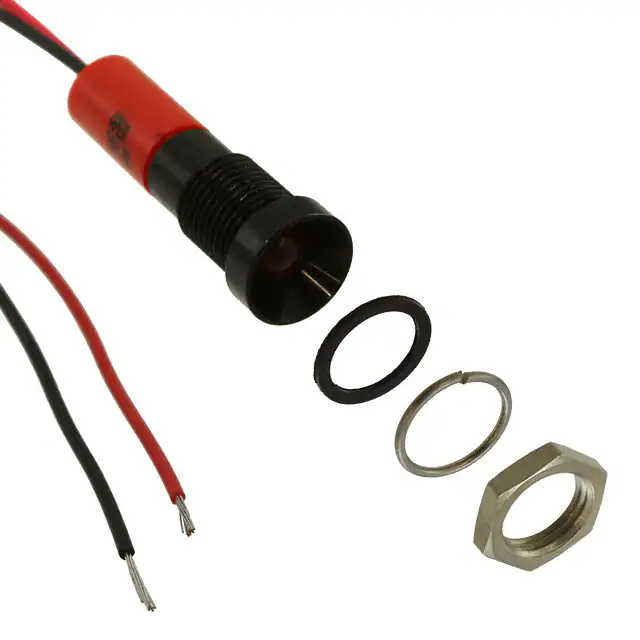

APEM Inc. Q8R3BXXR24E
