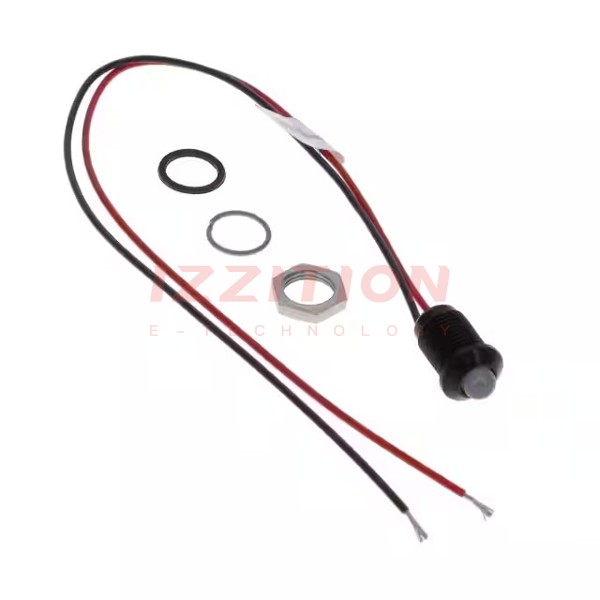

| Part Number | Q8P5BXXW24E | Q8P1BXXW24E | Q8P3BXXW24E |
|---|---|---|---|
| Manufacturer | APEM Inc. | APEM Inc. | APEM Inc. |
| Product Status | Active | Active | Active |
| Type | LED | LED | LED |
| Lamp Color | White | White | White |
| Lens Color | White | White | White |
| Lens Transparency | Diffused | Diffused | Diffused |
| Ratings | DC | DC | DC |
| Voltage | 24V | 24V | 24V |
| Current | 20mA | 20mA | 20mA |
| Panel Cutout Shape | Round | Round | Round |
| Panel Cutout Dimensions | 0.315" (8.00mm) | 0.31" (7.87mm) | 0.31" (7.87mm) |
| Lens Size | 5.00mm Dia | 5mm, T-1 3/4 | 5mm, T-1 3/4 |
| Lens Style | Round with Domed Top | Round with Domed Top | Round with Domed Top |
| Millicandela Rating | 1600mcd | 1600mcd | 1600mcd |
| Wavelength - Peak | - | - | - |
| Viewing Angle | 100° | 100° | 100° |
| Termination Style | Wire Leads - 7.87" (200.00mm) | Solder Lug | Wire Leads - 7.87" (200.00mm) |
| Ingress Protection | IP67 | IP67 | IP67 |
| Features | - | - | - |
