APEM Inc.-Q8P3CXXY12E - Panel Indicators, Pilot Lights Product Specifications and Latest Quotes

Part Number	Q8P3CXXY12E	Q8R3CXXY12E	Q8P1CXXY12E	Q8P3BXXY12E	Q8P3CXXB12E	Q8P3CXXG12E	Q8P3CXXR12E	Q8P3CXXW12E
Manufacturer	APEM Inc.	APEM Inc.	APEM Inc.	APEM Inc.	APEM Inc.	APEM Inc.	APEM Inc.	APEM Inc.
Product Status	Active	Active	Active	Active	Active	Active	Active	Active
Type	LED	LED	LED	LED	LED	LED	LED	LED
Lamp Color	Yellow	Yellow	Yellow	Yellow	Blue	Green	Red	White
Lens Color	Yellow	Yellow	Yellow	Yellow	Blue	Green	Red	White
Lens Transparency	Diffused	Diffused	Diffused	Diffused	Diffused	Diffused	Diffused	Diffused
Ratings	DC	DC	DC	DC	DC	DC	DC	DC
Voltage	12V	12V	12V	12V	12V	12V	12V	12V
Current	20mA	20mA	20mA	20mA	20mA	20mA	20mA	20mA
Panel Cutout Shape	Round	Round	Round	Round	Round	Round	Round	Round
Panel Cutout Dimensions	0.31" (7.87mm)	0.31" (7.87mm)	0.31" (7.87mm)	0.31" (7.87mm)	0.31" (7.87mm)	0.31" (7.87mm)	0.31" (7.87mm)	0.31" (7.87mm)
Lens Size	5mm, T-1 3/4	5mm, T-1 3/4	5mm, T-1 3/4	5mm, T-1 3/4	5mm, T-1 3/4	5mm, T-1 3/4	5mm, T-1 3/4	5mm, T-1 3/4
Lens Style	Round with Domed Top	Round with Domed Top	Round with Domed Top	Round with Domed Top	Round with Domed Top	Round with Domed Top	Round with Domed Top	Round with Domed Top
Millicandela Rating	50mcd	50mcd	50mcd	50mcd	1600mcd	60mcd	100mcd	1600mcd
Wavelength - Peak	-	-	-	-	-	-	-	-
Viewing Angle	100°	100°	100°	100°	100°	100°	100°	100°
Termination Style	Wire Leads - 7.87" (200.00mm)	Wire Leads - 7.87" (200.00mm)	Solder Lug	Wire Leads - 7.87" (200.00mm)	Wire Leads - 7.87" (200.00mm)	Wire Leads - 7.87" (200.00mm)	Wire Leads - 7.87" (200.00mm)	Wire Leads - 7.87" (200.00mm)
Ingress Protection	IP67	IP67	IP67	IP67	IP67	IP67	IP67	IP67
Features	-	-	-	-	-	-	-	-

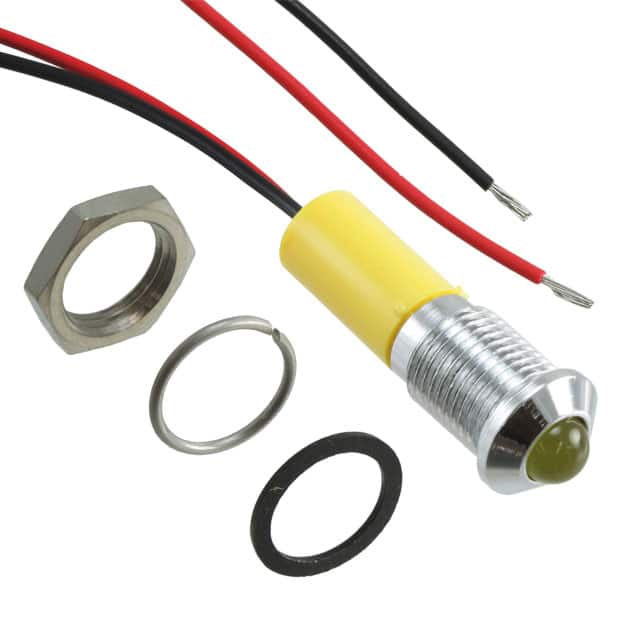

APEM Inc. Q8P3CXXY12E
