Please send RFQ , we will respond immediately.

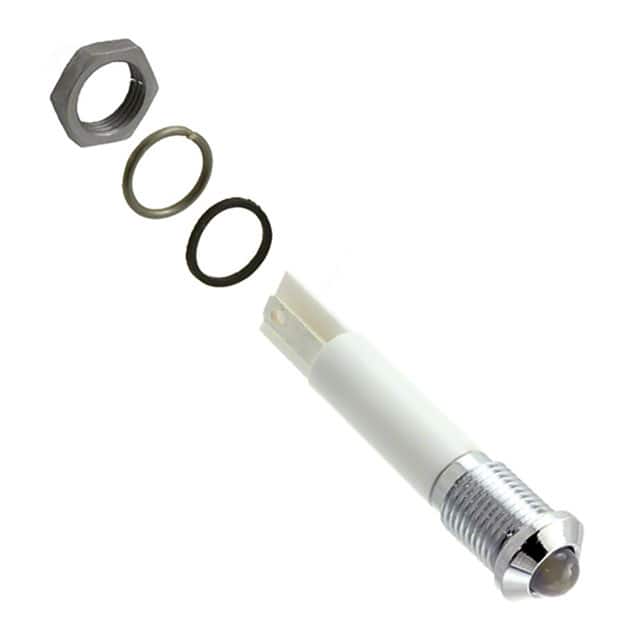

| Part Number | Q8P1CXXHW24E | Q8P1CXXW24E | Q8P1CXXHY24E | Q8P1CXXHB24E | Q8P1CXXHG24E | Q8P1CXXHO24E | Q8P1CXXHR24E |
|---|---|---|---|---|---|---|---|
| Manufacturer | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Type | LED | LED | LED | LED | LED | LED | LED |
| Lamp Color | White | White | Yellow | Blue | Green | Orange | Red |
| Lens Color | White | White | Yellow | Blue | Green | Orange | Red |
| Lens Transparency | Diffused | Diffused | Diffused | Diffused | Diffused | Diffused | Diffused |
| Ratings | DC | DC | DC | DC | DC | DC | DC |
| Voltage | 24V | 24V | 12V | 24V | 24V | 24V | 24V |
| Current | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA |
| Panel Cutout Shape | Round | Round | Round | Round | Round | Round | Round |
| Panel Cutout Dimensions | 0.32" (8.13mm) | 0.31" (7.87mm) | 0.32" (8.13mm) | 0.32" (8.13mm) | 0.32" (8.13mm) | 0.32" (8.13mm) | 0.32" (8.13mm) |
| Lens Size | - | 5mm, T-1 3/4 | - | - | - | - | - |
| Lens Style | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top |
| Millicandela Rating | - | 1600mcd | 2100mcd | - | 1900mcd | 4500mcd | 6000mcd |
| Wavelength - Peak | - | - | - | - | - | - | - |
| Viewing Angle | - | 100° | - | - | - | - | - |
| Termination Style | Quick Connect - 0.110" (2.8mm) | Solder Lug | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) |
| Ingress Protection | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 |
| Features | - | - | - | - | - | - | - |
