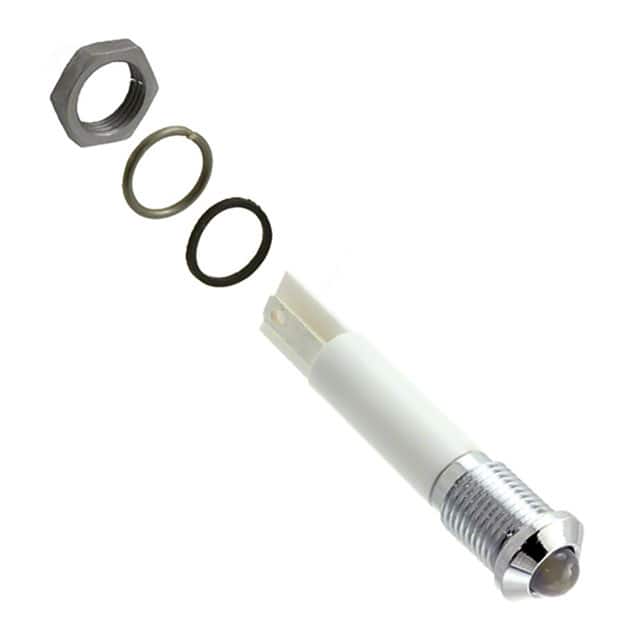

| Part Number | Q8P1CXXHW02E | Q8P1CXXHY02E | Q8P1CXXHB02E | Q8P1CXXHG02E | Q8P1CXXHO02E | Q8P1CXXHR02E |
|---|---|---|---|---|---|---|
| Manufacturer | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | LED | LED | LED | LED | LED | LED |
| Lamp Color | White | Yellow | Blue | Green | Orange | Red |
| Lens Color | White | Yellow | Blue | Green | Orange | Red |
| Lens Transparency | Diffused | Diffused | Diffused | Diffused | Diffused | Diffused |
| Ratings | Vf (Typ), If (Max) | Vf (Typ), If (Max) | Vf (Typ), If (Max) | Vf (Typ), If (Max) | Vf (Typ), If (Max) | Vf (Typ), If (Max) |
| Voltage | 2V | 2V | 2V | 2V | 2V | 2V |
| Current | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA |
| Panel Cutout Shape | Round | Round | Round | Round | Round | Round |
| Panel Cutout Dimensions | 0.32" (8.13mm) | 0.32" (8.13mm) | 0.32" (8.13mm) | 0.32" (8.13mm) | 0.32" (8.13mm) | 0.32" (8.13mm) |
| Lens Size | - | - | - | - | - | - |
| Lens Style | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top |
| Millicandela Rating | - | 2100mcd | - | 1900mcd | 4500mcd | 6000mcd |
| Wavelength - Peak | - | - | - | - | - | - |
| Viewing Angle | - | - | - | - | - | - |
| Termination Style | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) |
| Ingress Protection | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 |
| Features | - | - | - | - | - | - |
