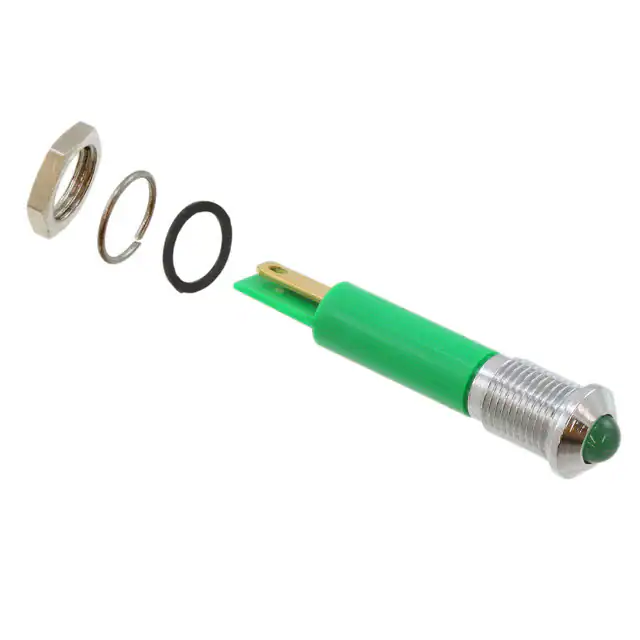

| Part Number | Q8P1CXXHG24E | Q8P1CXXHO24E | Q8P1CXXHR24E | Q8P5CXXHG24E | Q8P1CXXHY24E | Q8P1CXXHW24E | Q8P1CXXG24E | Q8P1CXXHB24E |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | LED | LED | LED | LED | LED | LED | LED | LED |
| Lamp Color | Green | Orange | Red | Green | Yellow | White | Green | Blue |
| Lens Color | Green | Orange | Red | Green | Yellow | White | Green | Blue |
| Lens Transparency | Diffused | Diffused | Diffused | Diffused | Diffused | Diffused | Diffused | Diffused |
| Ratings | DC | DC | DC | DC | DC | DC | DC | DC |
| Voltage | 24V | 24V | 24V | 24V | 12V | 24V | 24V | 24V |
| Current | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA |
| Panel Cutout Shape | Round | Round | Round | Round | Round | Round | Round | Round |
| Panel Cutout Dimensions | 0.32" (8.13mm) | 0.32" (8.13mm) | 0.32" (8.13mm) | 0.315" (8.00mm) | 0.32" (8.13mm) | 0.32" (8.13mm) | 0.31" (7.87mm) | 0.32" (8.13mm) |
| Lens Size | - | - | - | 5.00mm Dia | - | - | 5mm, T-1 3/4 | - |
| Lens Style | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top |
| Millicandela Rating | 1900mcd | 4500mcd | 6000mcd | 1900mcd | 2100mcd | - | 60mcd | - |
| Wavelength - Peak | - | - | - | - | - | - | - | - |
| Viewing Angle | - | - | - | 100° | - | - | 100° | - |
| Termination Style | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) | Wire Leads - 7.87" (200.00mm) | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) | Solder Lug | Quick Connect - 0.110" (2.8mm) |
| Ingress Protection | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 |
| Features | - | - | - | - | - | - | - | - |
