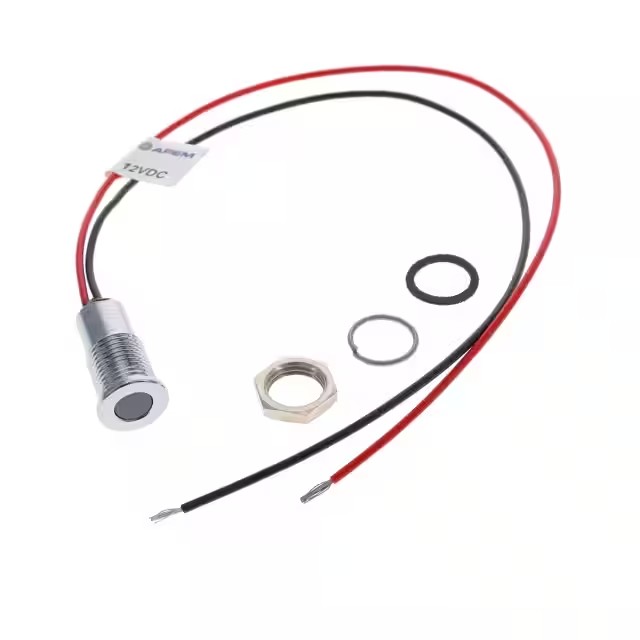

| Part Number | Q8F5CXXW12E | Q8F1CXXW12E | Q8F3CXXW12E | Q8F5BXXW12E | Q8F5CXXB12E | Q8F5CXXW02E |
|---|---|---|---|---|---|---|
| Manufacturer | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | LED | LED | LED | LED | LED | LED |
| Lamp Color | White | White | White | White | Blue | White |
| Lens Color | White | White | White | White | Blue | White |
| Lens Transparency | Diffused | Diffused | Diffused | Diffused | Diffused | Diffused |
| Ratings | DC | DC | DC | DC | DC | - |
| Voltage | 12V | 12V | 12V | 12V | 12V | 2V |
| Current | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA |
| Panel Cutout Shape | Round | Round | Round | Round | Round | Round |
| Panel Cutout Dimensions | 0.315" (8.00mm) | 0.31" (7.87mm) | 0.31" (7.87mm) | 0.315" (8.00mm) | 0.315" (8.00mm) | 0.315" (8.00mm) |
| Lens Size | 5.00mm Dia | 5mm, T-1 3/4 | 5mm, T-1 3/4 | 5.00mm Dia | 5.00mm Dia | 5.00mm Dia |
| Lens Style | Round with Domed Top | Round with Flat Top | Round with Flat Top | Round with Domed Top | Round with Domed Top | Round with Domed Top |
| Millicandela Rating | 500mcd | 25mcd | 500mcd | 500mcd | 50mcd | 500mcd |
| Wavelength - Peak | - | - | - | - | - | - |
| Viewing Angle | 100° | 100° | 100° | 100° | 100° | 100° |
| Termination Style | Wire Leads - 7.87" (200.00mm) | Solder Lug | Wire Leads - 7.87" (200.00mm) | Wire Leads - 7.87" (200.00mm) | Wire Leads - 7.87" (200.00mm) | Wire Leads - 7.87" (200.00mm) |
| Ingress Protection | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 |
| Features | - | - | - | - | - | - |
