APEM Inc.-Q6R3CXXR24E - Panel Indicators, Pilot Lights Product Specifications and Latest Quotes

Part Number	Q6R3CXXR24E	Q6R3CXXY24E	Q6R3CXXW24E	Q6P3CXXR24E	Q6R1CXXR24E	Q6R3BXXR24E	Q6R3CXXB24E	Q6R3CXXG24E
Manufacturer	APEM Inc.	APEM Inc.	APEM Inc.	APEM Inc.	APEM Inc.	APEM Inc.	APEM Inc.	APEM Inc.
Product Status	Active	Active	Active	Active	Active	Active	Active	Active
Type	LED	LED	LED	LED	LED	LED	LED	LED
Lamp Color	Red	Yellow	White	Red	Red	Red	Blue	Green
Lens Color	Red	Yellow	White	Red	Red	Red	Blue	Green
Lens Transparency	Diffused	Diffused	Diffused	Diffused	Diffused	Diffused	Diffused	Diffused
Ratings	DC	DC	DC	DC	DC	DC	DC	DC
Voltage	24V	24V	24V	24V	24V	24V	24V	24V
Current	20mA	20mA	20mA	20mA	20mA	20mA	20mA	20mA
Panel Cutout Shape	Round	Round	Round	Round	Round	Round	Round	Round
Panel Cutout Dimensions	0.24" (6.10mm)	0.24" (6.10mm)	0.24" (6.10mm)	0.24" (6.10mm)	0.24" (6.10mm)	0.24" (6.10mm)	0.24" (6.10mm)	0.24" (6.10mm)
Lens Size	3mm, T-1	3mm, T-1	3mm, T-1	3mm, T-1	3mm, T-1	3mm, T-1	3mm, T-1	3mm, T-1
Lens Style	Round with Domed Top	Round with Domed Top	Round with Domed Top	Round with Domed Top	Round with Domed Top	Round with Domed Top	Round with Domed Top	Round with Domed Top
Millicandela Rating	40mcd	30mcd	1200mcd	40mcd	40mcd	40mcd	65mcd	40mcd
Wavelength - Peak	-	-	-	-	-	-	-	-
Viewing Angle	100°	100°	100°	100°	100°	100°	100°	100°
Termination Style	Wire Leads - 7.87" (200.00mm)	Wire Leads - 7.87" (200.00mm)	Wire Leads - 7.87" (200.00mm)	Wire Leads - 7.87" (200.00mm)	Solder Lug	Wire Leads - 7.87" (200.00mm)	Wire Leads - 7.87" (200.00mm)	Wire Leads - 7.87" (200.00mm)
Ingress Protection	IP67	IP67	IP67	IP67	IP67	IP67	IP67	IP67
Features	-	-	-	-	-	-	-	-

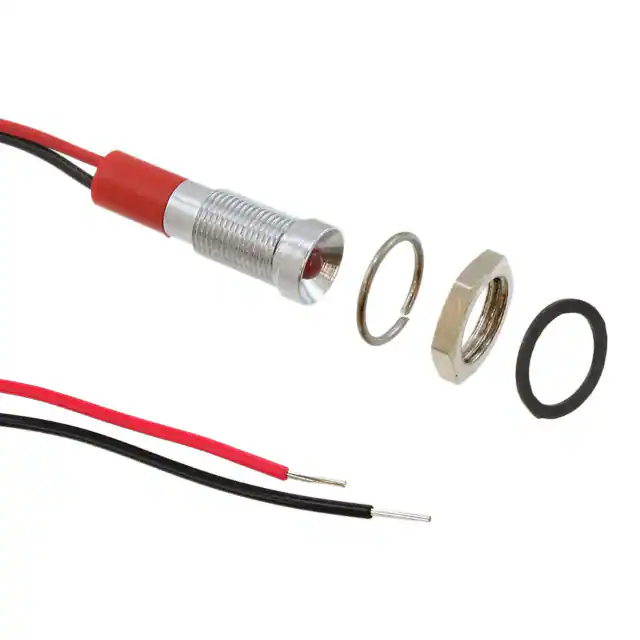

APEM Inc. Q6R3CXXR24E
