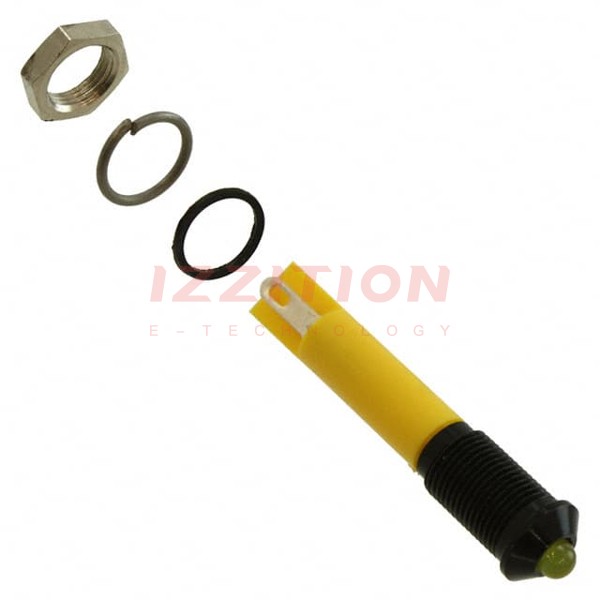

| Part Number | Q6P1BXXY12E | Q6P3BXXY12E | Q6P1CXXY12E | Q6R1BXXY12E | Q6F1BXXY12E | Q6P1BXXB12E | Q6P1BXXG12E | Q6P1BXXR12E | Q6P1BXXW12E |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | LED | LED | LED | LED | LED | LED | LED | LED | LED |
| Lamp Color | Yellow | Yellow | Yellow | Yellow | Yellow | Blue | Green | Red | White |
| Lens Color | Yellow | Yellow | Yellow | Yellow | Yellow | Blue | Green | Red | White |
| Lens Transparency | Diffused | Diffused | Diffused | Diffused | Diffused | Diffused | Diffused | Diffused | Diffused |
| Ratings | DC | DC | DC | DC | DC | DC | DC | DC | DC |
| Voltage | 12V | 12V | 12V | 12V | 12V | 12V | 12V | 12V | 12V |
| Current | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA |
| Panel Cutout Shape | Round | Round | Round | Round | Round | Round | Round | Round | Round |
| Panel Cutout Dimensions | 0.24" (6.10mm) | 0.24" (6.10mm) | 0.24" (6.10mm) | 0.24" (6.10mm) | 0.24" (6.10mm) | 0.24" (6.10mm) | 0.24" (6.10mm) | 0.24" (6.10mm) | 0.24" (6.10mm) |
| Lens Size | 3mm, T-1 | 3mm, T-1 | 3mm, T-1 | 3mm, T-1 | 3mm, T-1 | 3mm, T-1 | 3mm, T-1 | 3mm, T-1 | 3mm, T-1 |
| Lens Style | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Flat Top | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top |
| Millicandela Rating | 30mcd | 30mcd | 30mcd | 30mcd | 8mcd | 1200mcd | 40mcd | 40mcd | 1200mcd |
| Wavelength - Peak | - | - | - | - | - | - | - | - | - |
| Viewing Angle | 100° | 100° | 100° | 100° | 100° | 100° | 100° | 100° | 100° |
| Termination Style | Solder Lug | Wire Leads - 7.87" (200.00mm) | Solder Lug | Solder Lug | Solder Lug | Solder Lug | Solder Lug | Solder Lug | Solder Lug |
| Ingress Protection | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 |
| Features | - | - | - | - | - | - | - | - | - |
