Please send RFQ , we will respond immediately.

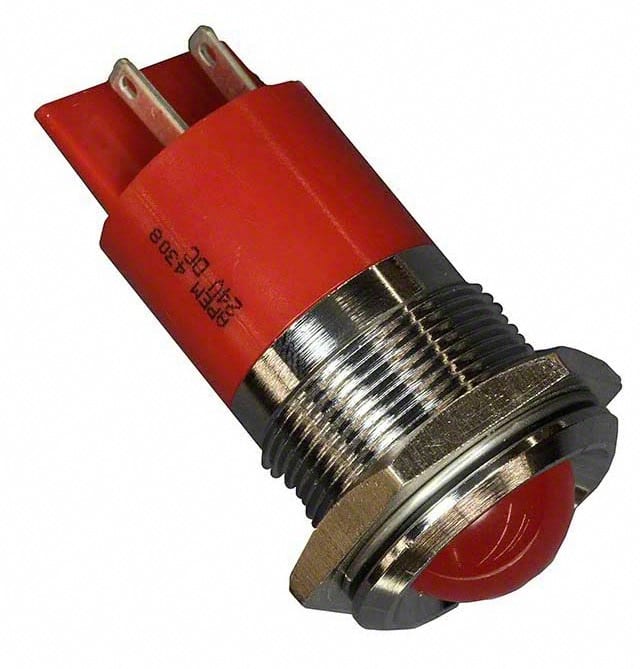

| Part Number | Q22P1CXXR24E | Q22P1CXXY24E | Q22P1CXXW24E | Q22F1CXXR24E | Q22P1BXXR24E | Q22P1CXXB24E | Q22P1CXXG24E |
|---|---|---|---|---|---|---|---|
| Manufacturer | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Type | LED | LED | LED | LED | LED | LED | LED |
| Lamp Color | Red | Yellow | White | Red | Red | Blue | Green |
| Lens Color | Red | Yellow | White | Red | Red | Blue | Green |
| Lens Transparency | Diffused | Diffused | Diffused | Diffused | Diffused | Diffused | Diffused |
| Ratings | DC | DC | DC | DC | DC | DC | DC |
| Voltage | 24V | 24V | 24V | 24V | 24V | 24V | 24V |
| Current | 40mA | 40mA | 40mA | 40mA | 40mA | 40mA | 40mA |
| Panel Cutout Shape | Round | Round | Round | Round | Round | Round | Round |
| Panel Cutout Dimensions | 0.87" (22.10mm) | 0.87" (22.10mm) | 0.87" (22.10mm) | 0.87" (22.10mm) | 0.87" (22.10mm) | 0.87" (22.10mm) | 0.87" (22.10mm) |
| Lens Size | 18.00mm Dia | 18.00mm Dia | 18.00mm Dia | 18.00mm Dia | 18.00mm Dia | 18.00mm Dia | 18.00mm Dia |
| Lens Style | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Flat Top | Round with Domed Top | Round with Domed Top | Round with Domed Top |
| Millicandela Rating | 80mcd | 60mcd | 350mcd | 70mcd | 80mcd | 120mcd | 95mcd |
| Wavelength - Peak | - | - | - | - | - | - | - |
| Viewing Angle | 100° | 100° | 100° | 100° | 100° | 100° | 100° |
| Termination Style | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) |
| Ingress Protection | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 |
| Features | - | - | - | - | - | - | - |
