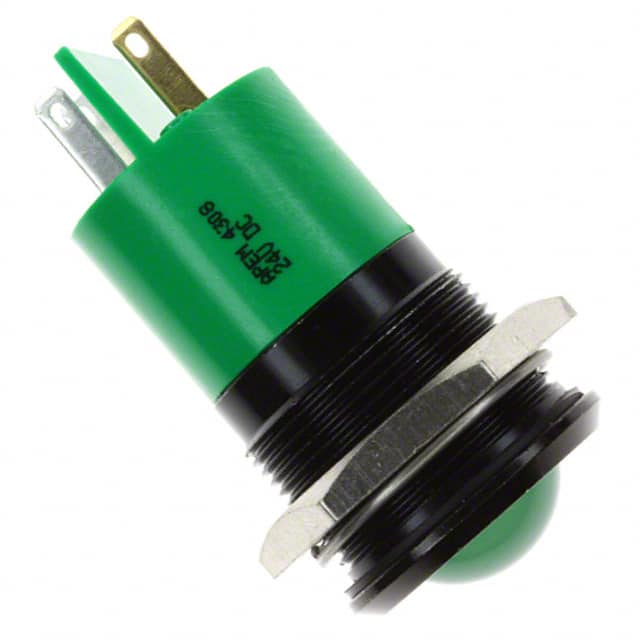

| Part Number | Q22P1BXXG24E | Q22P1CXXG24E | Q22P1BXXR24E | Q22P1BXXY24E | Q22P1BXXW24E | Q22F1BXXG24E | Q22P1BXXB24E |
|---|---|---|---|---|---|---|---|
| Manufacturer | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Type | LED | LED | LED | LED | LED | LED | LED |
| Lamp Color | Green | Green | Red | Yellow | White | Green | Blue |
| Lens Color | Green | Green | Red | Yellow | White | Green | Blue |
| Lens Transparency | Diffused | Diffused | Diffused | Diffused | Diffused | Diffused | Diffused |
| Ratings | DC | DC | DC | DC | DC | DC | DC |
| Voltage | 24V | 24V | 24V | 24V | 24V | 24V | 24V |
| Current | 40mA | 40mA | 40mA | 40mA | 40mA | 40mA | 40mA |
| Panel Cutout Shape | Round | Round | Round | Round | Round | Round | Round |
| Panel Cutout Dimensions | 0.87" (22.10mm) | 0.87" (22.10mm) | 0.87" (22.10mm) | 0.87" (22.10mm) | 0.87" (22.10mm) | 0.87" (22.10mm) | 0.87" (22.10mm) |
| Lens Size | 18.00mm Dia | 18.00mm Dia | 18.00mm Dia | 18.00mm Dia | 18.00mm Dia | 18.00mm Dia | 18.00mm Dia |
| Lens Style | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Flat Top | Round with Domed Top |
| Millicandela Rating | 95mcd | 95mcd | 80mcd | 60mcd | 350mcd | 5mcd | 120mcd |
| Wavelength - Peak | - | - | - | - | - | - | - |
| Viewing Angle | 100° | 100° | 100° | 100° | 100° | 100° | 100° |
| Termination Style | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) |
| Ingress Protection | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 |
| Features | - | - | - | - | - | - | - |
