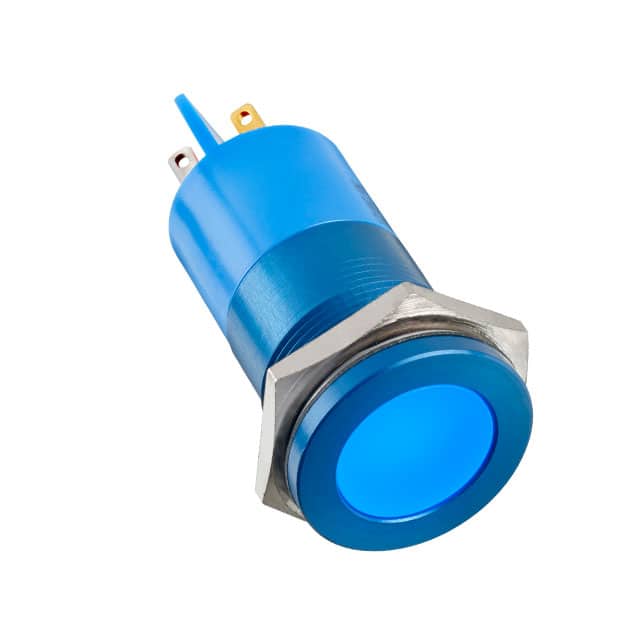

| Part Number | Q22F1ABXXB110E | Q22F5ABXXB110E | Q22F1BXXB110E |
|---|---|---|---|
| Manufacturer | APEM Inc. | APEM Inc. | APEM Inc. |
| Product Status | Active | Active | Active |
| Type | LED | LED | LED |
| Lamp Color | Blue | Blue | Blue |
| Lens Color | Blue | Blue | Blue |
| Lens Transparency | Diffused | Diffused | Diffused |
| Ratings | AC | AC | AC |
| Voltage | 110V | 110V | 110V |
| Current | 5mA | 5mA | 5mA |
| Panel Cutout Shape | Round | Round | Round |
| Panel Cutout Dimensions | 0.87" (22.10mm) | 0.87" (22.10mm) | 0.87" (22.10mm) |
| Lens Size | 18.00mm Dia | 18.00mm Dia | 18.00mm Dia |
| Lens Style | Round with Flat Top | Round with Flat Top | Round with Flat Top |
| Millicandela Rating | 101mcd | 101mcd | 100mcd |
| Wavelength - Peak | - | - | - |
| Viewing Angle | - | - | 100° |
| Termination Style | Solder Lug | Wire Leads - 7.87" (200.00mm) | Quick Connect - 0.110" (2.8mm) |
| Ingress Protection | IP67 | IP67 | IP67 |
| Features | - | - | - |
