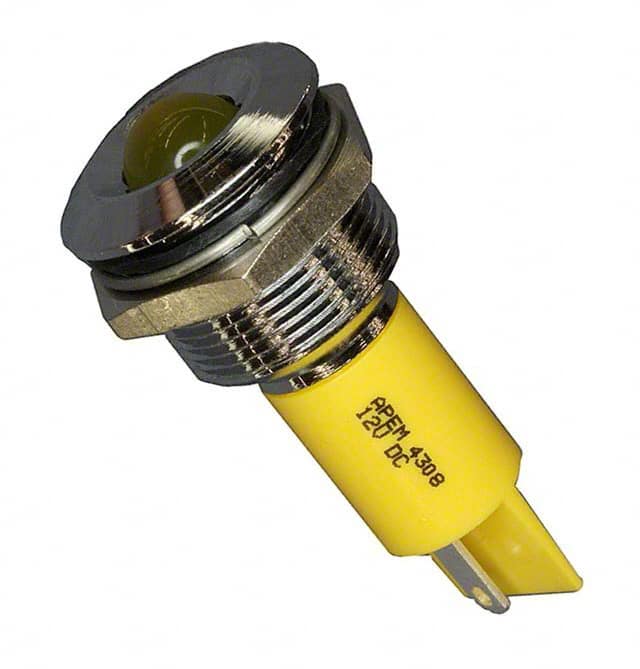

| Part Number | Q19P1CXXY12E | Q16P1CXXY12E | Q19P1BXXY12E | Q19P1CXXB12E | Q19P1CXXG12E | Q19P1CXXR12E | Q19P1CXXW12E |
|---|---|---|---|---|---|---|---|
| Manufacturer | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Type | LED | LED | LED | LED | LED | LED | LED |
| Lamp Color | Yellow | Yellow | Yellow | Blue | Green | Red | White |
| Lens Color | Yellow | Yellow | Yellow | Blue | Green | Red | White |
| Lens Transparency | Diffused | Diffused | Diffused | Diffused | Diffused | Diffused | Diffused |
| Ratings | DC | DC | DC | DC | DC | DC | DC |
| Voltage | 12V | 12V | 12V | 12V | 12V | 12V | 12V |
| Current | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA |
| Panel Cutout Shape | Round | Round | Round | Round | Round | Round | Round |
| Panel Cutout Dimensions | 0.75" (19.05mm) | 0.63" (16.00mm) | 0.75" (19.05mm) | 0.75" (19.05mm) | 0.75" (19.05mm) | 0.75" (19.05mm) | 0.75" (19.05mm) |
| Lens Size | 10.00mm Dia | 10.00mm Dia | 10.00mm Dia | 10.00mm Dia | 10.00mm Dia | 10.00mm Dia | 10.00mm Dia |
| Lens Style | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top |
| Millicandela Rating | 50mcd | 50mcd | 50mcd | 540mcd | 60mcd | 100mcd | 1000mcd |
| Wavelength - Peak | - | - | - | - | - | - | - |
| Viewing Angle | 60° | 100° | 60° | 60° | 60° | 60° | 60° |
| Termination Style | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) |
| Ingress Protection | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 |
| Features | - | - | - | - | - | - | - |
