Please send RFQ , we will respond immediately.

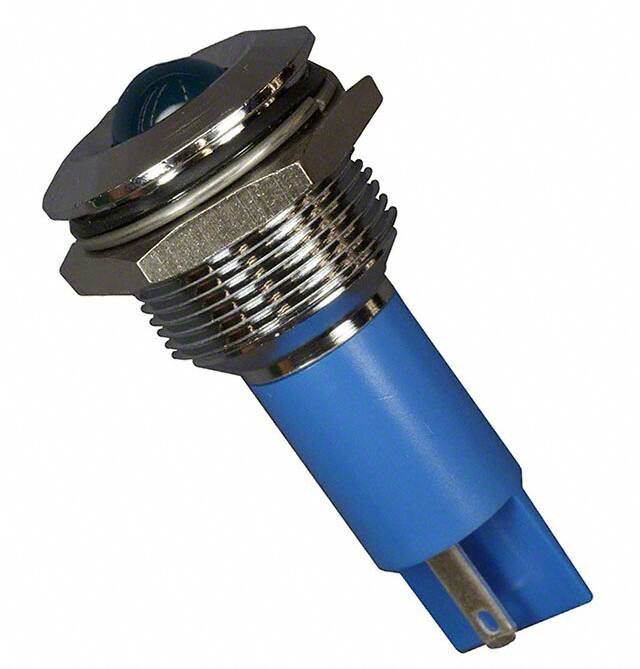

| Part Number | Q19P1CXXB24E | Q19P1CXXR24E | Q19P1CXXG24E | Q19P1CXXY24E | Q19P1CXXW24E | Q16P1CXXB24E | Q19P1BXXB24E |
|---|---|---|---|---|---|---|---|
| Manufacturer | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Type | LED | LED | LED | LED | LED | LED | LED |
| Lamp Color | Blue | Red | Green | Yellow | White | Blue | Blue |
| Lens Color | Blue | Red | Green | Yellow | White | Blue | Blue |
| Lens Transparency | Diffused | Diffused | Diffused | Diffused | Diffused | Diffused | Diffused |
| Ratings | DC | DC | DC | DC | DC | DC | DC |
| Voltage | 24V | 24V | 24V | 24V | 24V | 24V | 24V |
| Current | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA |
| Panel Cutout Shape | Round | Round | Round | Round | Round | Round | Round |
| Panel Cutout Dimensions | 0.75" (19.05mm) | 0.75" (19.05mm) | 0.75" (19.05mm) | 0.75" (19.05mm) | 0.75" (19.05mm) | 0.63" (16.00mm) | 0.75" (19.05mm) |
| Lens Size | 10.00mm Dia | 10.00mm Dia | 10.00mm Dia | 10.00mm Dia | 10.00mm Dia | 10.00mm Dia | 10.00mm Dia |
| Lens Style | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top |
| Millicandela Rating | 540mcd | 100mcd | 60mcd | 50mcd | 1000mcd | 540mcd | 540mcd |
| Wavelength - Peak | - | - | - | - | - | - | - |
| Viewing Angle | 60° | 60° | 60° | 60° | 60° | 100° | 60° |
| Termination Style | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) |
| Ingress Protection | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 |
| Features | - | - | - | - | - | - | - |
