Please send RFQ , we will respond immediately.

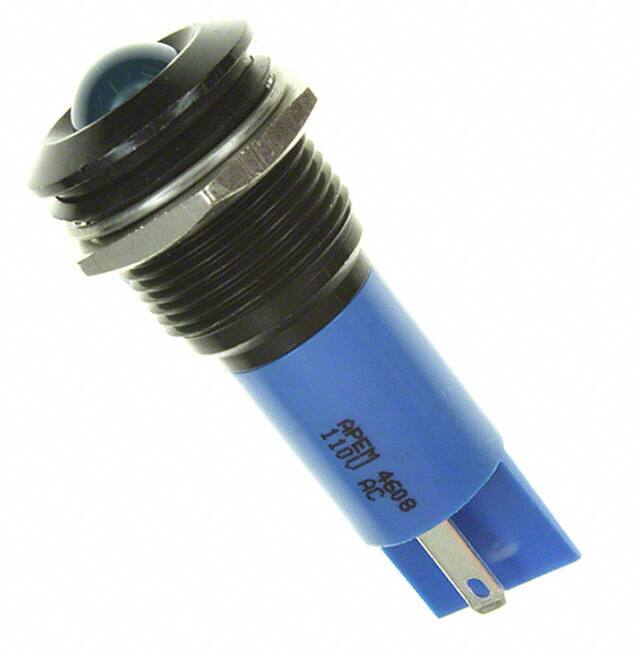

| Part Number | Q16P1BXXB110E | Q16P1BXXG110E | Q16P1BXXR110E | Q16P1BXXY110E | Q16P1CXXB110E | Q16P1BXXW110E | Q19P1BXXB110E | Q16F1BXXB110E |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | LED | LED | LED | LED | LED | LED | LED | LED |
| Lamp Color | Blue | Green | Red | Yellow | Blue | White | Blue | Blue |
| Lens Color | Blue | Green | Red | Yellow | Blue | White | Blue | Blue |
| Lens Transparency | Diffused | Diffused | Diffused | Diffused | Diffused | Diffused | Diffused | Diffused |
| Ratings | AC | AC | AC | AC | AC | AC | AC | AC |
| Voltage | 110V | 110V | 110V | 110V | 110V | 110V | 110V | 110V |
| Current | 6mA | 6mA | 6mA | 6mA | 6mA | 6mA | 6mA | 6mA |
| Panel Cutout Shape | Round | Round | Round | Round | Round | Round | Round | Round |
| Panel Cutout Dimensions | 0.63" (16.00mm) | 0.63" (16.00mm) | 0.63" (16.00mm) | 0.63" (16.00mm) | 0.63" (16.00mm) | 0.63" (16.00mm) | 0.75" (19.05mm) | 0.63" (16.00mm) |
| Lens Size | 10.00mm Dia | 10.00mm Dia | 10.00mm Dia | 10.00mm Dia | 10.00mm Dia | 10.00mm Dia | 10.00mm Dia | 10.00mm Dia |
| Lens Style | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Flat Top |
| Millicandela Rating | 540mcd | 60mcd | 100mcd | 50mcd | 540mcd | 1000mcd | 540mcd | 100mcd |
| Wavelength - Peak | - | - | - | - | - | - | - | - |
| Viewing Angle | 100° | 100° | 100° | 100° | 100° | 100° | 60° | 100° |
| Termination Style | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) |
| Ingress Protection | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 |
| Features | - | - | - | - | - | - | - | - |
