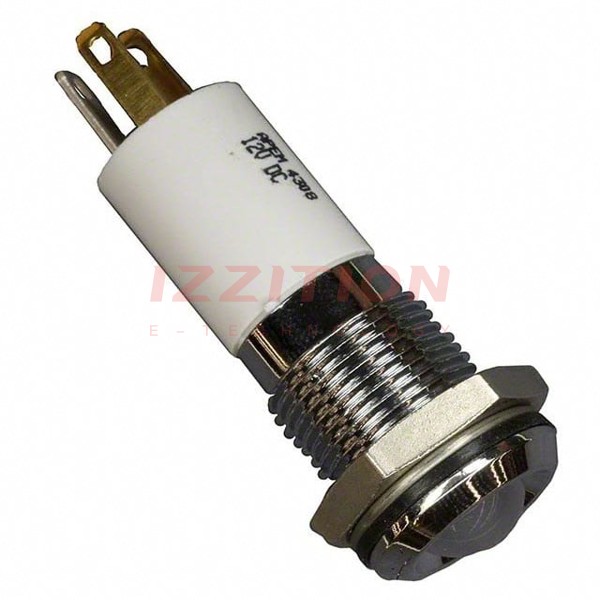

| Part Number | Q14P1CZZRYG12E | Q14P3CZZRYG12E | Q14P1BZZRYG12E | Q14P1CZZRYG02E |
|---|---|---|---|---|
| Manufacturer | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. |
| Product Status | Active | Active | Active | Active |
| Type | LED | LED | LED | LED |
| Lamp Color | Green, Red, Yellow | Green, Red, Yellow | Green, Red, Yellow | Green, Red, Yellow |
| Lens Color | - | - | - | - |
| Lens Transparency | Diffused | Diffused | Diffused | Diffused |
| Ratings | DC | DC | DC | Vf (Typ), If (Max) |
| Voltage | 12V Green, 12V Red, 12V Yellow | 12V Green, 12V Red, 12V Yellow | 12V Green, 12V Red, 12V Yellow | 2V Green, 2V Red, 2V Yellow |
| Current | 20mA Green, 20mA Red, 20mA Yellow | 20mA Green, 20mA Red, 20mA Yellow | 20mA Green, 20mA Red, 20mA Yellow | 20mA Green, 20mA Red, 20mA Yellow |
| Panel Cutout Shape | Round | Round | Round | Round |
| Panel Cutout Dimensions | 0.55" (13.97mm) | 0.55" (13.97mm) | 0.55" (13.97mm) | 0.55" (13.97mm) |
| Lens Size | 10.00mm Dia | 10.00mm Dia | 10.00mm Dia | 10.00mm Dia |
| Lens Style | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top |
| Millicandela Rating | 50mcd Green, 80mcd Red, 50mcd Yellow | 50mcd Green, 80mcd Red, 50mcd Yellow | 50mcd Green, 80mcd Red, 50mcd Yellow | 50mcd Green, 80mcd Red, 50mcd Yellow |
| Wavelength - Peak | - | - | - | - |
| Viewing Angle | 100° | 100° | 100° | 100° |
| Termination Style | Quick Connect - 0.110" (2.8mm) | Wire Leads - 7.87" (200.00mm) | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) |
| Ingress Protection | IP67 | IP67 | IP67 | IP67 |
| Features | - | - | - | - |
