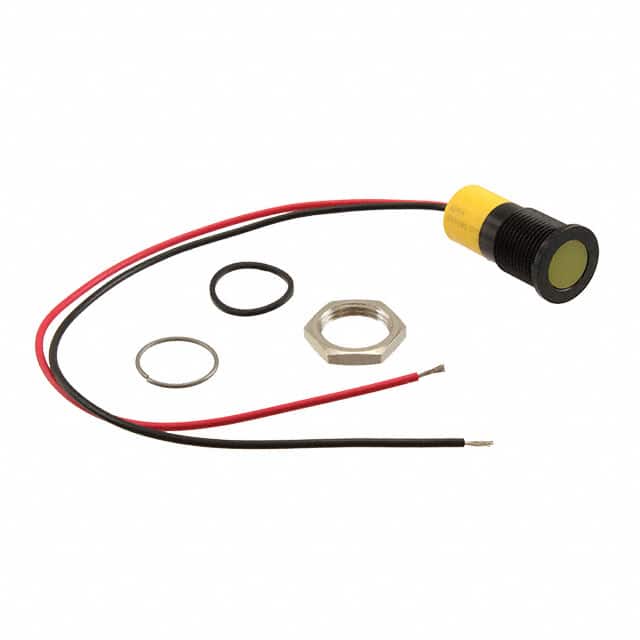

| Part Number | Q14F3BXXHY220E | Q14F3BXXHG220E | Q14F3BXXHR220E |
|---|---|---|---|
| Manufacturer | APEM Inc. | APEM Inc. | APEM Inc. |
| Product Status | Active | Active | Active |
| Type | LED | LED | LED |
| Lamp Color | Yellow | Green | Red |
| Lens Color | Yellow | Green | Red |
| Lens Transparency | Diffused | Diffused | Diffused |
| Ratings | AC | AC | AC |
| Voltage | 220V | 220V | 220V |
| Current | 3mA | 3mA | 3mA |
| Panel Cutout Shape | Round | Round | Round |
| Panel Cutout Dimensions | 0.55" (14.00mm) | 0.55" (14.00mm) | 0.55" (14.00mm) |
| Lens Size | 16.00mm Dia | 16.00mm Dia | 16.00mm Dia |
| Lens Style | Round with Flat Top | Round with Flat Top | Round with Flat Top |
| Millicandela Rating | 250mcd | 250mcd | 800mcd |
| Wavelength - Peak | - | - | - |
| Viewing Angle | - | - | - |
| Termination Style | Wire Leads - 7.87" (200.00mm) | Wire Leads - 7.87" (200.00mm) | Wire Leads - 7.87" (200.00mm) |
| Ingress Protection | IP67 | IP67 | IP67 |
| Features | - | - | - |
