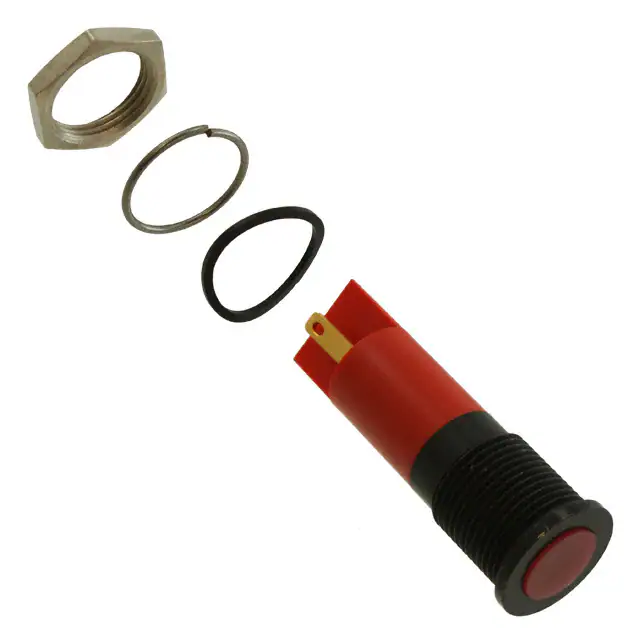

| Part Number | Q14F1BXXR12E | Q14F1BXXY12E | Q14F3BXXR12E | Q14P1BXXR12E | Q14F1CXXR12E | Q14F1BXXW12E | Q14F1BXXB12E | Q14F1BXXG12E |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | LED | LED | LED | LED | LED | LED | LED | LED |
| Lamp Color | Red | Yellow | Red | Red | Red | White | Blue | Green |
| Lens Color | Red | Yellow | Red | Red | Red | White | Blue | Green |
| Lens Transparency | Diffused | Diffused | Diffused | Diffused | Diffused | Diffused | Diffused | Diffused |
| Ratings | DC | DC | DC | DC | DC | DC | DC | DC |
| Voltage | 12V | 12V | 12V | 12V | 12V | 12V | 12V | 12V |
| Current | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA |
| Panel Cutout Shape | Round | Round | Round | Round | Round | Round | Round | Round |
| Panel Cutout Dimensions | 0.55" (13.97mm) | 0.55" (13.97mm) | 0.55" (13.97mm) | 0.55" (13.97mm) | 0.55" (13.97mm) | 0.55" (13.97mm) | 0.55" (13.97mm) | 0.55" (13.97mm) |
| Lens Size | 10.00mm Dia | 10.00mm Dia | 10.00mm Dia | 10.00mm Dia | 10.00mm Dia | 10.00mm Dia | 10.00mm Dia | 10.00mm Dia |
| Lens Style | Round with Flat Top | Round with Flat Top | Round with Flat Top | Round with Domed Top | Round with Flat Top | Round with Flat Top | Round with Flat Top | Round with Flat Top |
| Millicandela Rating | 10mcd | 4mcd | 10mcd | 100mcd | 10mcd | 120mcd | 100mcd | 5mcd |
| Wavelength - Peak | - | - | - | - | - | - | - | - |
| Viewing Angle | 100° | 100° | 100° | 100° | 100° | 100° | 100° | 100° |
| Termination Style | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) | Wire Leads - 7.87" (200.00mm) | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) |
| Ingress Protection | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 |
| Features | - | - | - | - | - | - | - | - |
