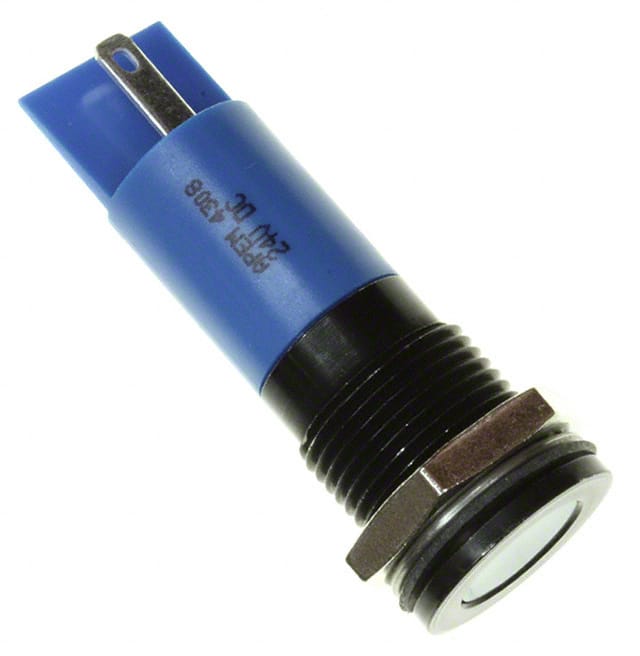

| Part Number | Q14F1BXXB24E | Q14F3BXXB24E | Q14F1BXXR24E | Q14F1BXXG24E | Q14F1BXXY24E | Q14F1CXXB24E | Q14F1BXXW24E | Q14F1BXXHB24E | Q14F1ABXXB24E |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | LED | LED | LED | LED | LED | LED | LED | LED | LED |
| Lamp Color | Blue | Blue | Red | Green | Yellow | Blue | White | Blue | Blue |
| Lens Color | Blue | Blue | Red | Green | Yellow | Blue | White | Blue | - |
| Lens Transparency | Diffused | Diffused | Diffused | Diffused | Diffused | Diffused | Diffused | Diffused | Diffused |
| Ratings | DC | DC | DC | DC | DC | DC | DC | DC | DC |
| Voltage | 24V | 24V | 24V | 24V | 24V | 24V | 24V | 24V | 24V |
| Current | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA |
| Panel Cutout Shape | Round | Round | Round | Round | Round | Round | Round | Round | Round |
| Panel Cutout Dimensions | 0.55" (13.97mm) | 0.55" (13.97mm) | 0.55" (13.97mm) | 0.55" (13.97mm) | 0.55" (13.97mm) | 0.55" (13.97mm) | 0.55" (13.97mm) | 0.55" (13.97mm) | 0.55" (13.97mm) |
| Lens Size | 10.00mm Dia | 10.00mm Dia | 10.00mm Dia | 10.00mm Dia | 10.00mm Dia | 10.00mm Dia | 10.00mm Dia | 10.00mm Dia | 10.00mm Dia |
| Lens Style | Round with Flat Top | Round with Flat Top | Round with Flat Top | Round with Flat Top | Round with Flat Top | Round with Flat Top | Round with Flat Top | Round with Flat Top | Round with Flat Top |
| Millicandela Rating | 100mcd | 100mcd | 10mcd | 5mcd | 4mcd | 100mcd | 120mcd | - | 100mcd |
| Wavelength - Peak | - | - | - | - | - | - | - | - | - |
| Viewing Angle | 100° | 100° | 100° | 100° | 100° | 100° | 100° | - | - |
| Termination Style | Quick Connect - 0.110" (2.8mm) | Wire Leads - 7.87" (200.00mm) | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) | Solder Lug |
| Ingress Protection | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 |
| Features | - | - | - | - | - | - | - | - | - |
