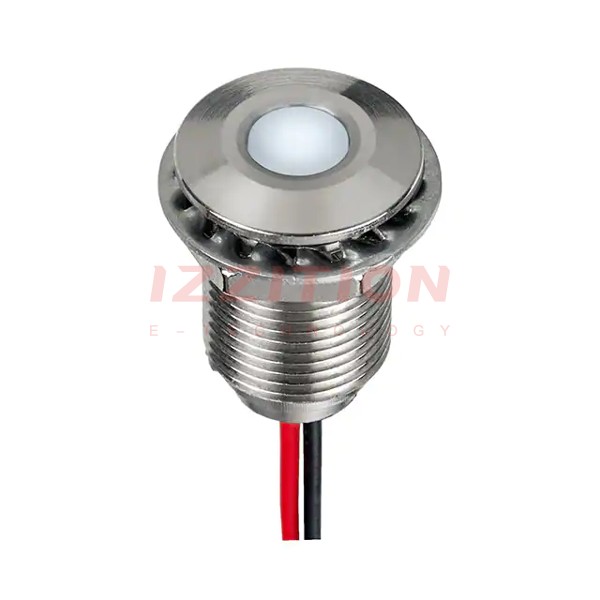

| Part Number | Q10F5SXXW02E | Q10F5SXXW12E | Q10F5SXXSW02E |
|---|---|---|---|
| Manufacturer | APEM Inc. | APEM Inc. | APEM Inc. |
| Product Status | Active | Active | Active |
| Type | LED | LED | LED |
| Lamp Color | White | White | White |
| Lens Color | - | - | - |
| Lens Transparency | - | - | - |
| Ratings | Vf (Typ), If (Max) | DC | Vf (Typ), If (Max) |
| Voltage | 3.3V | 12V | 3.3V |
| Current | 20mA | 20mA | 20mA |
| Panel Cutout Shape | Round | Round | Round |
| Panel Cutout Dimensions | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) |
| Lens Size | 5mm, T-1 3/4 | 5mm, T-1 3/4 | 5mm, T-1 3/4 |
| Lens Style | Round with Flat Top | Round with Flat Top | Round with Flat Top |
| Millicandela Rating | 500mcd | 500mcd | 950mcd |
| Wavelength - Peak | - | - | - |
| Viewing Angle | 60° | 60° | 60° |
| Termination Style | Wire Leads - 7.87" (200.00mm) | Wire Leads - 7.87" (200.00mm) | Wire Leads - 7.87" (200.00mm) |
| Ingress Protection | IP67 | IP67 | IP67 |
| Features | - | - | - |
