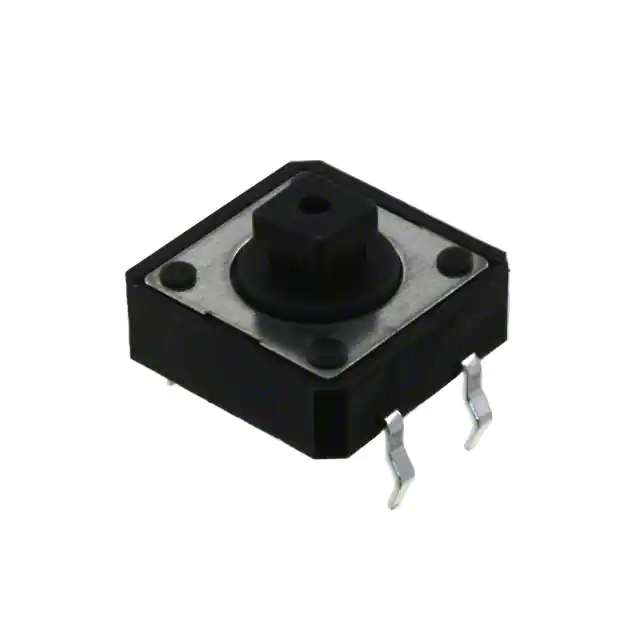

APEM Inc.-MJTP1212C - Tactile Switches Product Specifications and Latest Quotes

Circuit:	SPST-NO
Switch Function:	Off-Mom
Contact Rating @ Voltage:	0.05A @ 12VDC
Actuator Type:	Plunger for Cap
Mounting Type:	Through Hole
Actuator Height off PCB, Vertical:	7.30mm
Actuator Length, Right Angle:	-
Actuator Orientation:	Top Actuated
Termination Style:	PC Pin
Outline:	12.00mm x 12.00mm
Illumination:	Non-Illuminated
Illumination Type, Color:	-
Illumination Voltage (Nominal):	-
Operating Force:	160gf
Ingress Protection:	-
Features:	Tactile Feedback
Operating Temperature:	-20°C ~ 70°C

APEM Inc. MJTP1212C
