APEM Inc.-MJTP1117 - Tactile Switches Product Specifications and Latest Quotes

Circuit:	SPST-NO
Switch Function:	Off-Mom
Contact Rating @ Voltage:	0.05A @ 12VDC
Actuator Type:	Rectangular Button
Mounting Type:	Through Hole, Right Angle
Actuator Height off PCB, Vertical:	-
Actuator Length, Right Angle:	3.72mm
Actuator Orientation:	Side Actuated
Termination Style:	PC Pin
Outline:	6.00mm x 3.50mm
Illumination:	Non-Illuminated
Illumination Type, Color:	-
Illumination Voltage (Nominal):	-
Operating Force:	180gf
Ingress Protection:	-
Features:	Tactile Feedback
Operating Temperature:	-20°C ~ 70°C

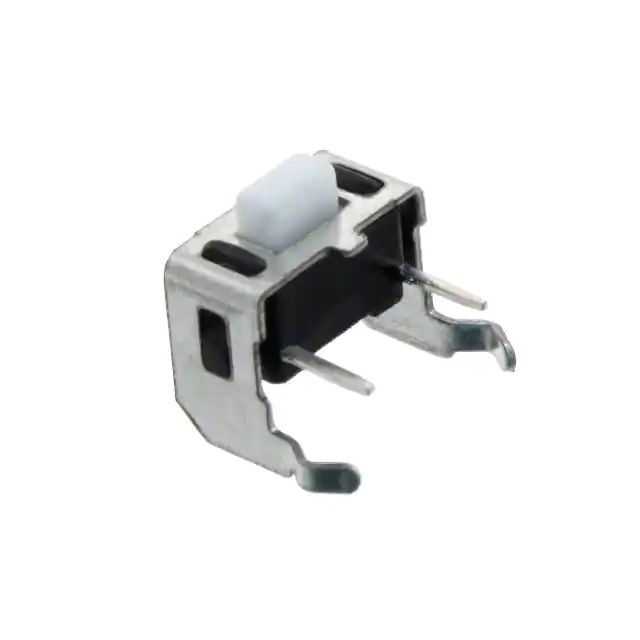

APEM Inc. MJTP1117
