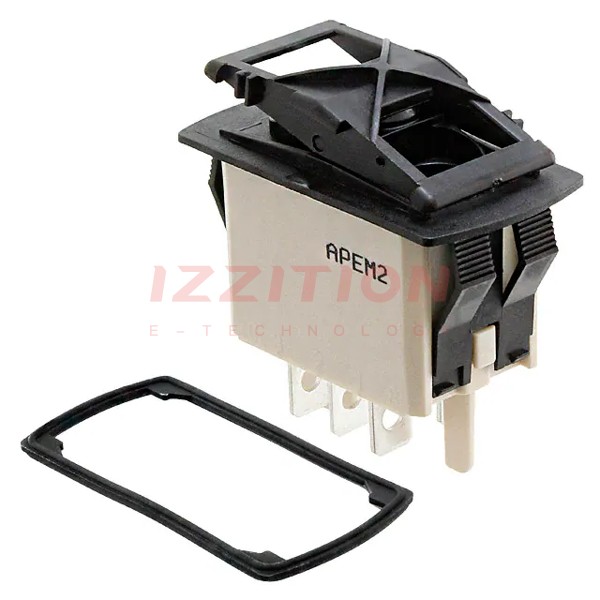

APEM Inc.-KR47CAKXXG - Rocker Switches Product Specifications and Latest Quotes

Mounting Type:	Panel Mount, Snap-In
Circuit:	DPDT
Switch Function:	Mom-Off-Mom
Current Rating (Amps):	10A (DC)
Voltage Rating - AC:	-
Voltage Rating - DC:	24 V
Actuator Type:	Actuator Arm, Cap Required
Color - Actuator/Cap:	-
Actuator Marking:	Varies by Cap
Illumination Type, Color:	-
Illumination Voltage (Nominal):	-
Termination Style:	Solder, Quick Connect - 0.250" (6.3mm)
Ingress Protection:	IP68 - Dust Tight, Waterproof
Features:	-
Panel Cutout Dimensions:	Rectangular - 36.80mm x 21.08mm
Operating Temperature:	-40°C ~ 85°C

APEM Inc. KR47CAKXXG
