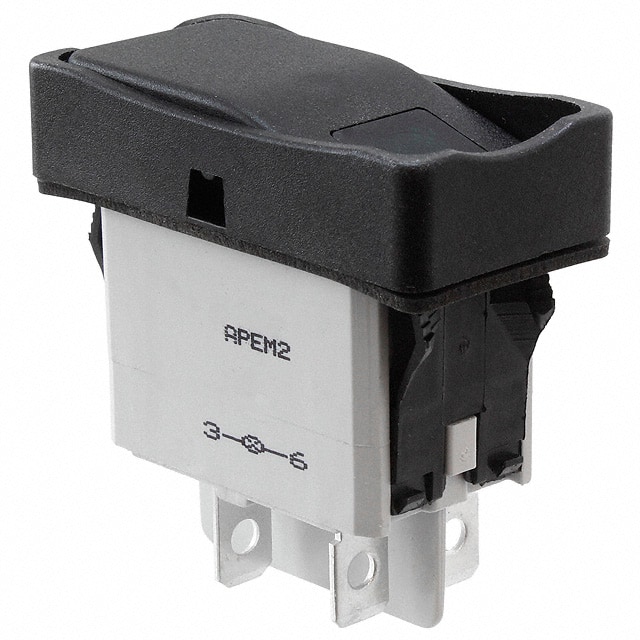

APEM Inc.-KG412A2XTA26X3 - Rocker Switches Product Specifications and Latest Quotes

Mounting Type:	Panel Mount, Snap-In
Circuit:	DPST
Switch Function:	On-Off
Current Rating (Amps):	15A (DC)
Voltage Rating - AC:	-
Voltage Rating - DC:	12 V
Actuator Type:	Convex (Reverse V) - Illuminated
Color - Actuator/Cap:	Black
Actuator Marking:	No Marking
Illumination Type, Color:	Fluorescent, Green
Illumination Voltage (Nominal):	110 VAC
Termination Style:	Solder, Quick Connect - 0.250" (6.3mm)
Ingress Protection:	IP65 - Dust Tight, Water Resistant
Features:	-
Panel Cutout Dimensions:	Rectangular - 36.80mm x 21.08mm
Operating Temperature:	-40°C ~ 85°C

APEM Inc. KG412A2XTA26X3
