APEM Inc.-KG372A2EEA28TTCV09XX10 - Rocker Switches Product Specifications and Latest Quotes

Mounting Type:	Panel Mount, Snap-In
Circuit:	SPDT
Switch Function:	Mom-Off-Mom
Current Rating (Amps):	10A (DC)
Voltage Rating - AC:	-
Voltage Rating - DC:	12 V
Actuator Type:	Convex (Reverse V) - Illuminated
Color - Actuator/Cap:	Black
Actuator Marking:	Triangular Arrows
Illumination Type, Color:	LED, Green/Green
Illumination Voltage (Nominal):	12 VDC
Termination Style:	Solder, Quick Connect - 0.250" (6.3mm)
Ingress Protection:	IP65 - Dust Tight, Water Resistant
Features:	-
Panel Cutout Dimensions:	Rectangular - 36.80mm x 21.08mm
Operating Temperature:	-10°C ~ 65°C

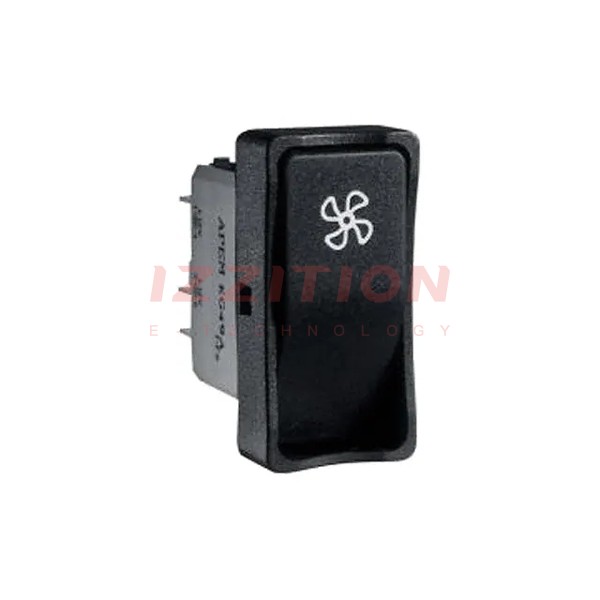

APEM Inc. KG372A2EEA28TTCV09XX10
