JD7509H
  • Share:

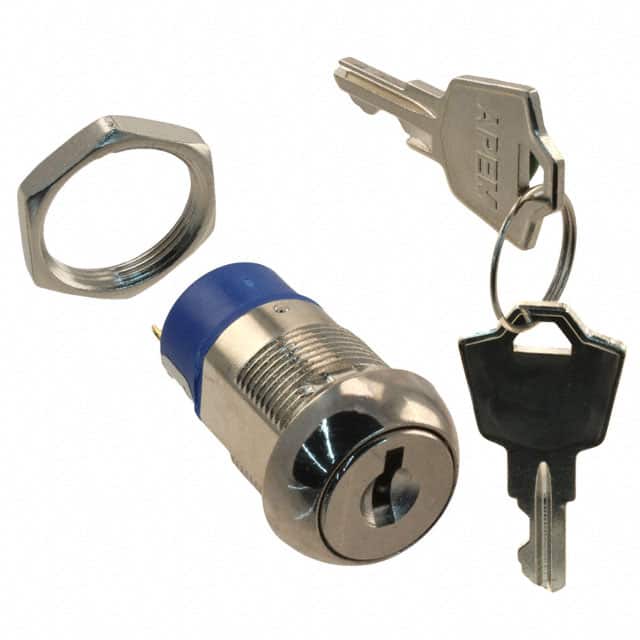

APEM Inc. JD7509H

Manufacturer No:
JD7509H
Manufacturer:
APEM Inc.
Package:
Tray
Datasheet:
JD7509H Datasheet
ECAD Model:
-
Description:
SWITCH KEYLOCK 3POS DP3T 4A 125V
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Circuit:DP3T
Number of Positions:3
Switch Function:On-On-On
Contact Timing:Not Specified
Current Rating (Amps):4A (AC)
Voltage Rating - AC:125 V
Voltage Rating - DC:-
Actuator Type:Flat Key
Key Removable Positions:1 only
Angle of Throw:45°
Contact Material:Copper Alloy
Contact Finish:Gold
Mounting Type:Panel Mount
Termination Style:Solder Lug
Panel Cutout Dimensions:Circular - 19.00mm Dia
Features:-
Operating Temperature:-30°C ~ 85°C
0 Remaining View Similar

In Stock

-
346

Please send RFQ , we will respond immediately.
