APEM Inc. IPR1SAD6

Manufacturer No:
IPR1SAD6
Manufacturer:
APEM Inc.
Package:
Bulk
Datasheet:
IPR1SAD6 Datasheet
ECAD Model:
-
Description:

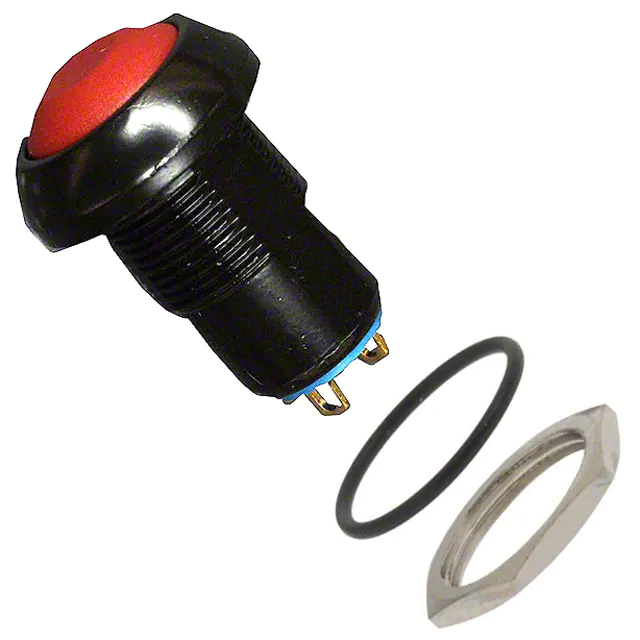

SWITCH PUSHBUTTON SPST 4A 12V
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Mounting Type:Panel Mount, Front
Type:Standard
Circuit:SPST
Switch Function:Off-On
Current Rating (Amps):2A (AC), 4A (DC)
Voltage Rating - AC:125 V
Voltage Rating - DC:12 V
Actuator Type:Round, Button
Actuator Marking:No Marking
Color - Actuator/Cap:Red
Illumination Type, Color:-
Illumination Voltage (Nominal):-
Termination Style:Solder Lug
Ingress Protection:IP67 - Dust Tight, Waterproof
Features:Epoxy Sealed Terminals
Panel Cutout Dimensions:Circular - 13.60mm Dia
Operating Temperature:-40°C ~ 85°C
