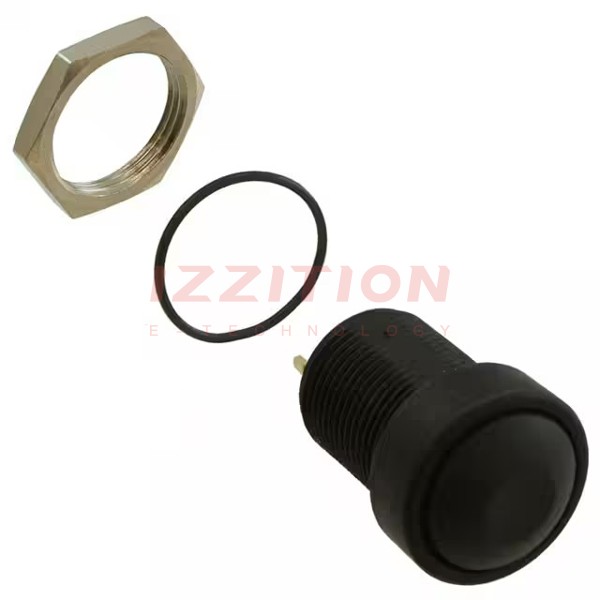

APEM Inc. IMR7P422234

Manufacturer No:
IMR7P422234
Manufacturer:
APEM Inc.
Package:
Bulk
Datasheet:
IMR7P422234 Datasheet
ECAD Model:
-
Description:
SWITCH PUSHBUTTON SPDT 3A 28V
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Mounting Type:Panel Mount, Front
Type:Standard
Circuit:SPDT
Switch Function:On-Mom
Current Rating (Amps):3A (DC)
Voltage Rating - AC:-
Voltage Rating - DC:28 V
Actuator Type:Round, Button, Domed
Actuator Marking:No Marking
Color - Actuator/Cap:Black
Illumination Type, Color:-
Illumination Voltage (Nominal):-
Termination Style:PC Pin
Ingress Protection:IP67 - Dust Tight, Waterproof
Features:Epoxy Sealed Terminals
Panel Cutout Dimensions:Circular - 13.60mm Dia
Operating Temperature:-40°C ~ 85°C
0 Remaining View Similar

In Stock

$22.00
40

Please send RFQ , we will respond immediately.
