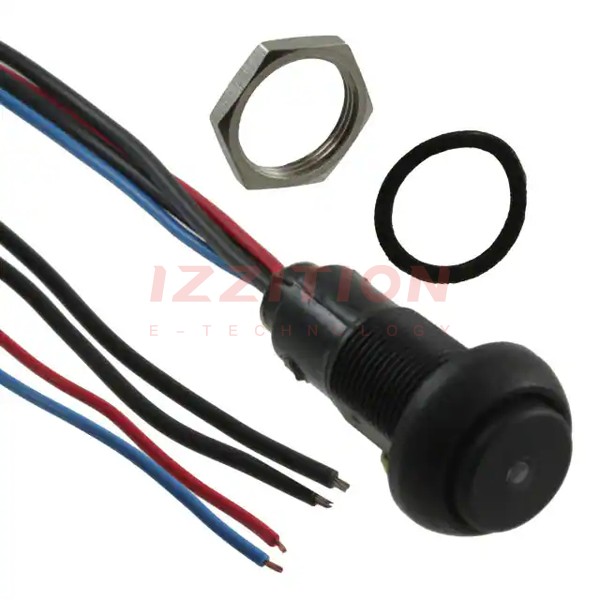

APEM Inc.-ILP3FAD2L0W - Pushbutton Switches Product Specifications and Latest Quotes

Mounting Type:	Panel Mount, Front
Type:	Standard, Illuminated
Circuit:	SPST-NO
Switch Function:	Off-Mom
Current Rating (Amps):	2A (DC)
Voltage Rating - AC:	-
Voltage Rating - DC:	24 V
Actuator Type:	Round, Button
Actuator Marking:	No Marking
Color - Actuator/Cap:	Black
Illumination Type, Color:	LED, White
Illumination Voltage (Nominal):	3.35 VDC
Termination Style:	Wire Leads
Ingress Protection:	IP67 - Dust Tight, Waterproof
Features:	Epoxy Sealed Terminals
Panel Cutout Dimensions:	Circular - 13.60mm Dia
Operating Temperature:	-40°C ~ 85°C

APEM Inc. ILP3FAD2L0W
