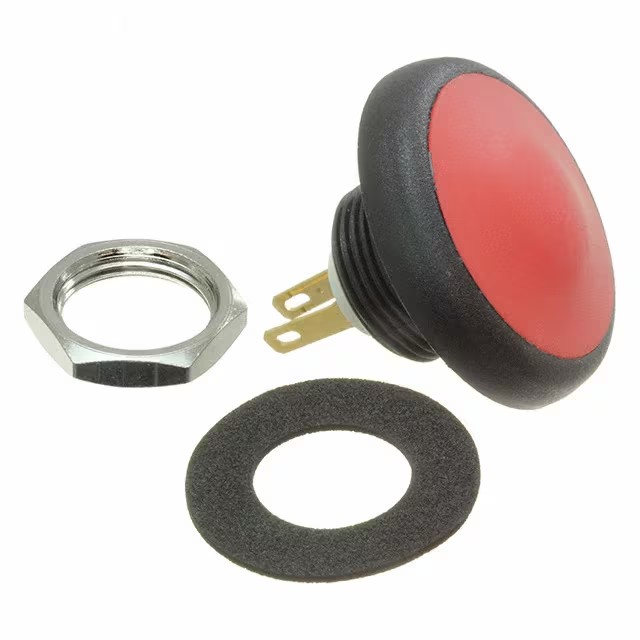

APEM Inc.-IFS3Z1AD600 - Pushbutton Switches Product Specifications and Latest Quotes

Mounting Type:	Panel Mount, Front
Type:	Standard
Circuit:	SPST-NO
Switch Function:	Off-Mom
Current Rating (Amps):	400mA (AC), 100mA (DC)
Voltage Rating - AC:	32 V
Voltage Rating - DC:	50 V
Actuator Type:	Round, Button
Actuator Marking:	No Marking
Color - Actuator/Cap:	Red
Illumination Type, Color:	-
Illumination Voltage (Nominal):	-
Termination Style:	Quick Connect - 0.110" (2.8mm)
Ingress Protection:	IP67 - Dust Tight, Waterproof
Features:	Epoxy Sealed Terminals
Panel Cutout Dimensions:	Circular - 16.00mm Dia
Operating Temperature:	-20°C ~ 85°C

APEM Inc. IFS3Z1AD600
