APEM Inc.-ICC3SAD2 - Pushbutton Switches Product Specifications and Latest Quotes

Mounting Type:	Panel Mount, Front
Type:	Standard
Circuit:	SPST-NO
Switch Function:	Off-Mom
Current Rating (Amps):	500mA (AC), 5A (DC)
Voltage Rating - AC:	48 V
Voltage Rating - DC:	28 V
Actuator Type:	Square, Button
Actuator Marking:	No Marking
Color - Actuator/Cap:	Black
Illumination Type, Color:	-
Illumination Voltage (Nominal):	-
Termination Style:	Solder Lug
Ingress Protection:	IP67 - Dust Tight, Waterproof
Features:	Epoxy Sealed Terminals
Panel Cutout Dimensions:	Circular - 13.60mm Dia
Operating Temperature:	-40°C ~ 85°C

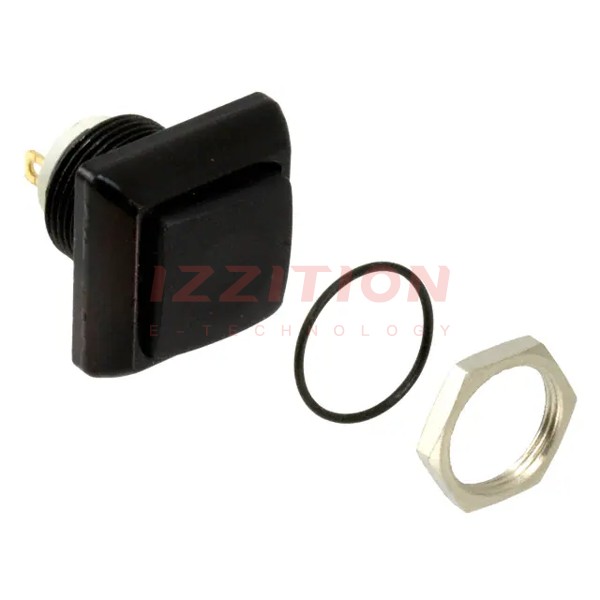

APEM Inc. ICC3SAD2
