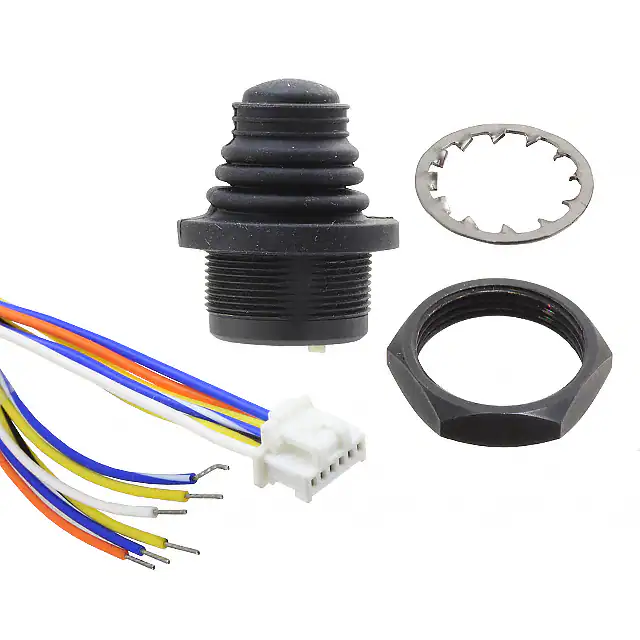

APEM Inc.-HS6T24GA - Navigation Switches, Joystick Product Specifications and Latest Quotes

Type:	Thumbstick, 2 - Axis
Actuator Type:	Pushbutton
Switch Function:	4-Way Directional, Center Select
Functions, Extra:	-
Output:	Digital (Mechanical Switch)
Voltage - Supply:	-
Current Rating (Amps):	10mA (DC)
Voltage Rating - AC:	-
Voltage Rating - DC:	30 V
Contact Material:	-
Contact Finish:	Gold
Resistance:	-
Mounting Type:	Panel Mount
Termination Style:	Wire Leads with Connector
Operating Temperature:	-25°C ~ 80°C
Panel Cutout Dimensions:	Circular - 25.02mm Dia
Ingress Protection:	IP68/IP69K - Dust Tight, Water Resistant, Waterproof
Features:	-

APEM Inc. HS6T24GA
