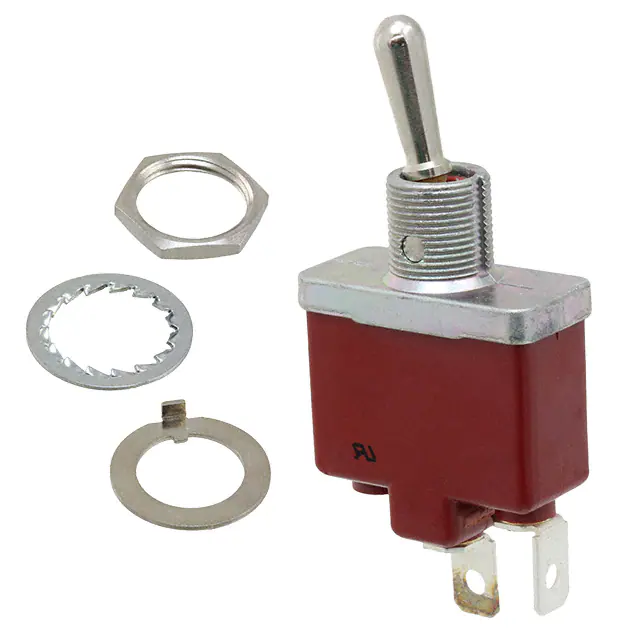

APEM Inc.-CT31021N020 - Toggle Switches Product Specifications and Latest Quotes

Mounting Type:	Panel Mount
Circuit:	SPST
Switch Function:	On-Off
Current Rating (Amps):	10A (AC), 15A (DC)
Voltage Rating - AC:	125 V
Voltage Rating - DC:	28 V
Actuator Type:	Standard Round
Actuator Length:	17.50mm
Illumination:	Non-Illuminated
Illumination Type, Color:	-
Illumination Voltage (Nominal):	-
Termination Style:	Solder, Quick Connect - 0.250" (6.3mm)
Panel Cutout Dimensions:	Circular - 12.20mm Dia
Bushing Thread:	15/32-32
Ingress Protection:	IP67 - Dust Tight, Waterproof
Features:	Sealed - Fully
Operating Temperature:	-40°C ~ 85°C

APEM Inc. CT31021N020
