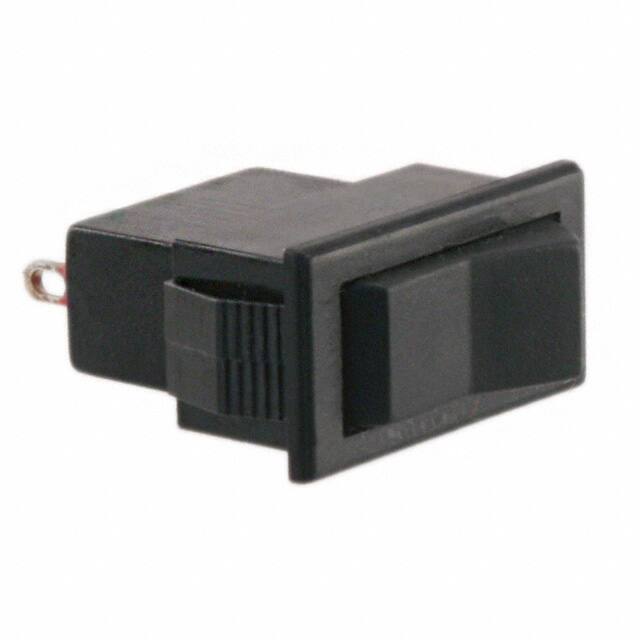

APEM Inc.-AS39S010010 - Rocker Switches Product Specifications and Latest Quotes

Mounting Type:	Panel Mount, Snap-In
Circuit:	SPDT
Switch Function:	On-Off-On
Current Rating (Amps):	4A (AC)
Voltage Rating - AC:	125 V
Voltage Rating - DC:	-
Actuator Type:	Concave (Standard V)
Color - Actuator/Cap:	Black
Actuator Marking:	No Marking
Illumination Type, Color:	-
Illumination Voltage (Nominal):	-
Termination Style:	Solder Lug
Ingress Protection:	-
Features:	Epoxy Sealed Terminals
Panel Cutout Dimensions:	Rectangular - 18.65mm x 8.90mm
Operating Temperature:	-40°C ~ 85°C

APEM Inc. AS39S010010
